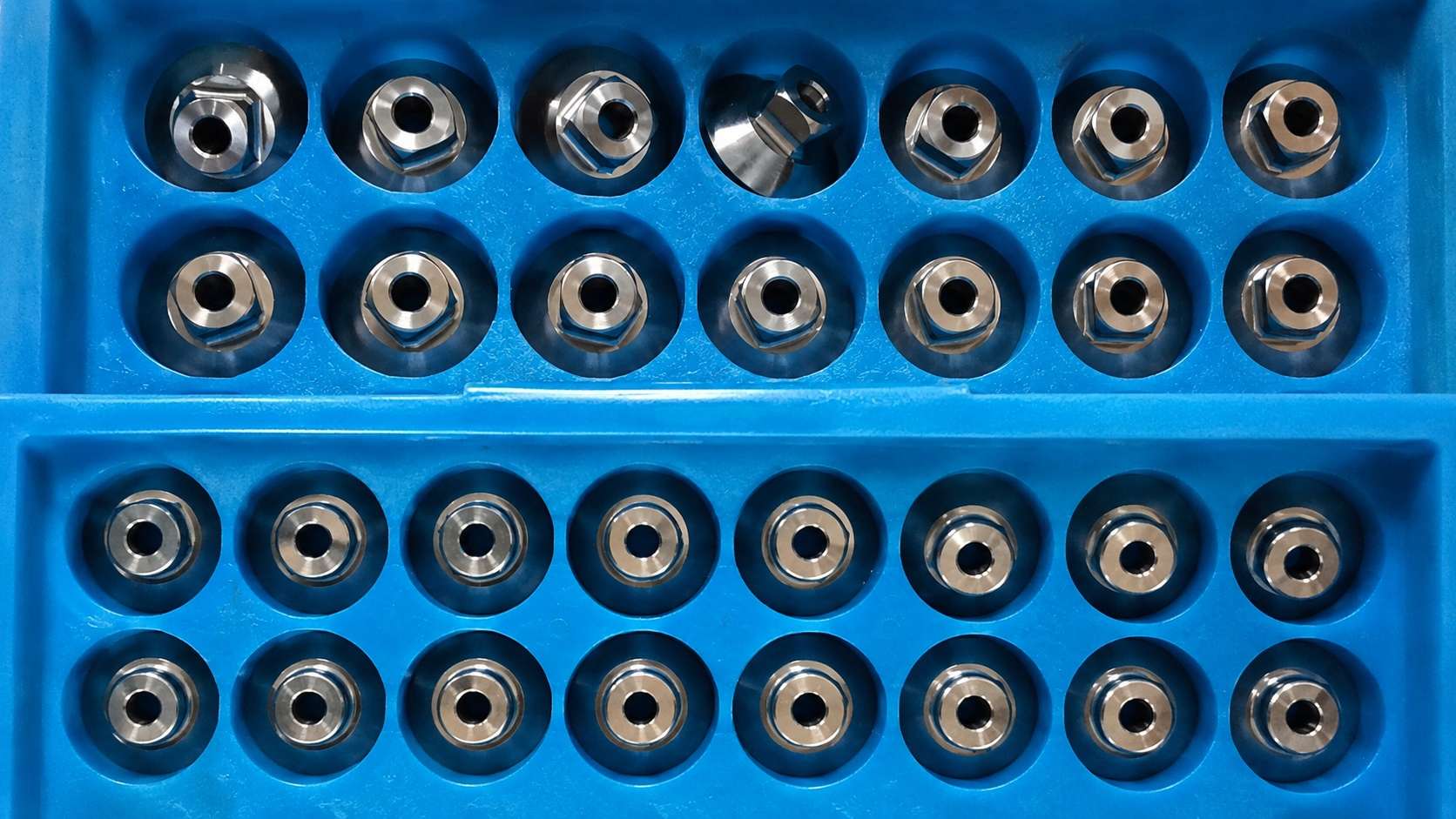

Rotating adapters are important components in modular prosthetic systems. They are used to provide rotational adjustment between the prosthetic socket and lower modular components, helping prosthetists align the final assembly more accurately.
For custom prosthetic component manufacturing, rotating adapters require stable CNC machining, accurate interface geometry, smooth rotation surfaces, reliable locking features and consistent surface finishing.
What Is a Rotating Adapter?
A rotating adapter is a prosthetic component designed to allow controlled rotational adjustment during assembly. Depending on the system design, it may be used with socket adapters, pyramid adapters, receivers, tube clamp adapters, foot adapters or other modular components.
The purpose of the rotating function is to help adjust the orientation of the prosthetic limb components while keeping the connection secure after final locking.
Common Rotating Adapter Features
| Feature | Function |
|---|---|
| Rotating Interface | Allows controlled angular adjustment during prosthetic alignment |
| Locking Screws | Secures the final position after adjustment |
| Socket or Receiver Connection | Connects the adapter to the upper or lower modular system |
| Machined Contact Surfaces | Supports smooth adjustment and stable assembly |
Material Options
Rotating adapters can be manufactured from titanium, stainless steel or aluminum according to customer drawings and application requirements. Titanium is often selected when strength, corrosion resistance and weight control are important. Stainless steel may be selected for robust structures, while aluminum may be used when lightweight design and cost control are priorities.
The final material should be confirmed based on the adapter structure, load requirement, surface finish, customer market and expected production quantity.

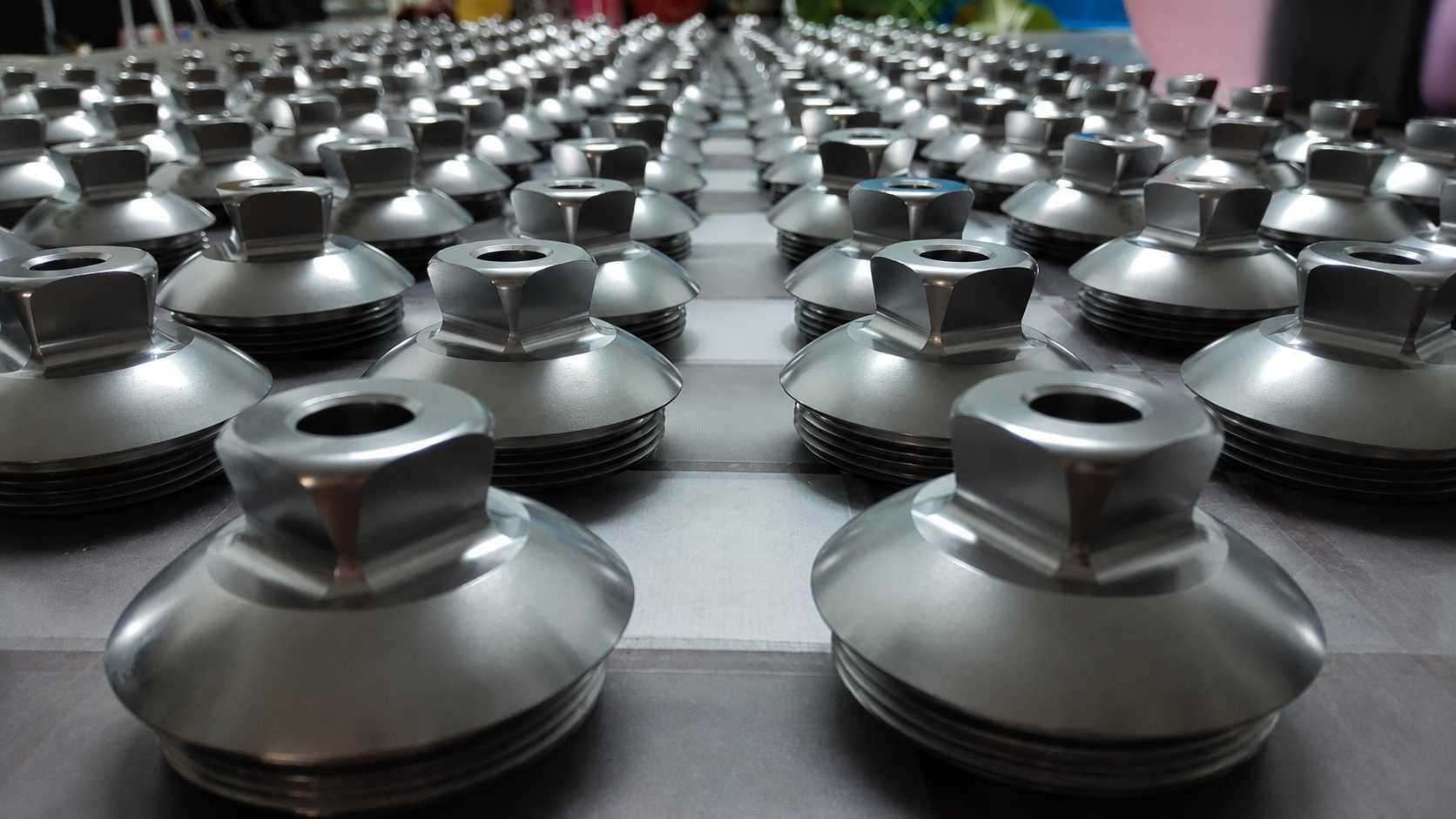

CNC Machining Considerations
Rotating adapters may require CNC turning, CNC milling, drilling, tapping, contour machining and surface finishing. The rotating contact surfaces must be machined with consistent accuracy so the adapter can adjust properly and lock securely.
If the adapter includes a receiver, pyramid, socket plate or sliding structure, the machining process should control the relationship between all connection features. This is important for alignment and assembly consistency.
Key Manufacturing Requirements
| Requirement | Why It Matters |
|---|---|
| Rotating Fit | Affects adjustment smoothness and final locking stability |
| Thread Quality | Important for locking screws and repeated assembly |
| Interface Accuracy | Ensures compatibility with mating prosthetic components |
| Surface Finish | Improves appearance, edge condition and customer acceptance |
Surface Finishing Options
Surface finish requirements for rotating adapters may include clean machining finish, polishing, blasting, anodizing, black surface treatment or other customer-specified finishing methods. The finish should not negatively affect rotating contact areas, threads or mating features.
For repeat orders, a reference sample or clear surface requirement can help maintain consistent appearance across batches.
Buyer Note
When ordering rotating adapters, provide the 2D drawing, 3D file, material grade, surface finish, quantity and mating component information if available. This helps confirm machining feasibility, fit and inspection requirements before production.
Custom Rotating Adapters from Sunrise Industrial
Sunrise Industrial manufactures custom rotating adapters, prosthetic adapters, tube clamp adapters, socket adapters, foot adapters, receivers, pyramid adapters and modular prosthetic components according to customer drawings and samples. We support titanium, stainless steel and aluminum CNC machining with surface finishing and inspection based on project requirements.
Need Custom Rotating Adapters?
Sunrise Industrial supports custom rotating adapters, prosthetic adapters, receivers, pyramid adapters and modular prosthetic components according to customer drawings, materials and surface finish requirements.
