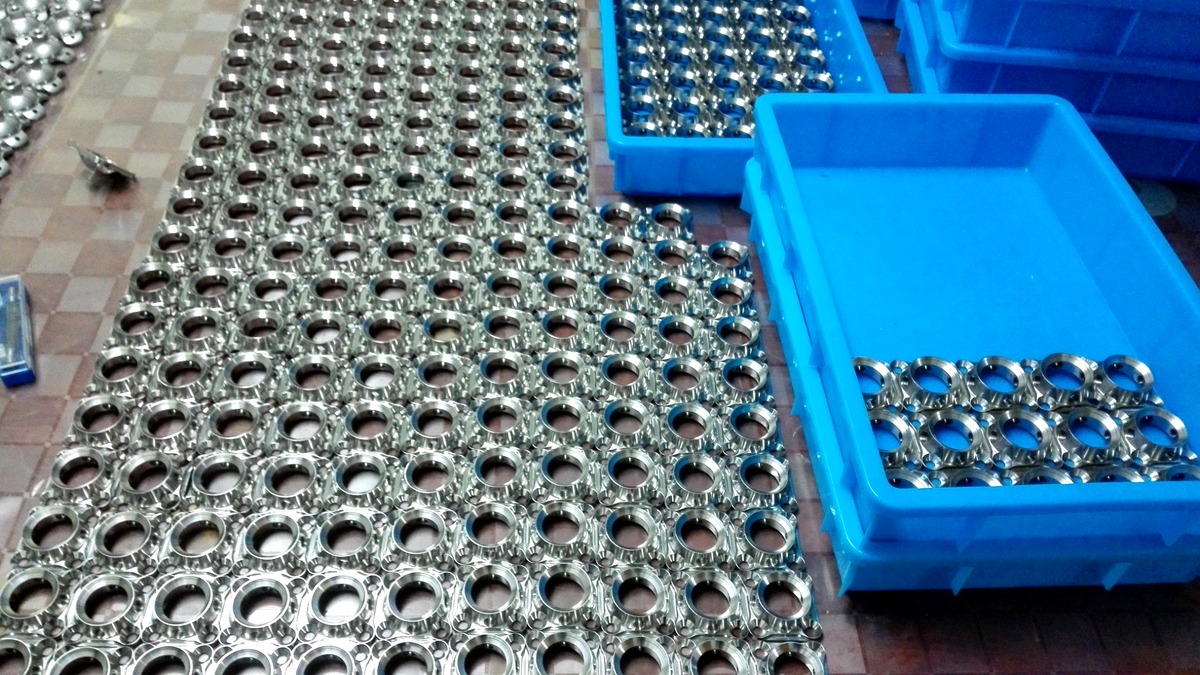

4-hole socket adapters are important connection components in modular prosthetic systems. They are commonly used to connect a prosthetic socket with lower modular components such as pyramid adapters, tube clamp adapters, receivers, pylons and foot adapters.
For custom prosthetic component manufacturing, the main points to control include the 4-hole pattern, overall height, material selection, interface accuracy, thread quality, surface finish and stable batch production.
What Is a 4-Hole Socket Adapter?
A 4-hole socket adapter is a machined prosthetic component with a four-hole mounting pattern for connection to the socket side. The lower side may be designed with a pyramid, receiver, rotating receiver, sliding structure or other modular interface according to the prosthetic system.
Because the adapter sits between the socket and the lower prosthetic assembly, dimensional accuracy and stable machining are important for correct alignment and reliable assembly.
Common 4-Hole Socket Adapter Types
| Type | Typical Function |
|---|---|
| 4-Hole Socket Adapter with Pyramid | Provides a male pyramid interface for modular connection |
| 4-Hole Socket Adapter with Receiver | Provides a receiver interface for adjustable modular assembly |
| Rotating 4-Hole Socket Adapter | Allows rotational adjustment according to system design |
| Sliding 4-Hole Socket Adapter | Supports position adjustment during prosthetic alignment |
Material Options for Socket Adapters
4-hole socket adapters can be manufactured from titanium, stainless steel or aluminum depending on the customer’s design and application requirements. Titanium is often selected when strength, corrosion resistance and weight control are important. Stainless steel may be selected for robust designs, while aluminum can be used when lightweight and cost control are key factors.
The material should be confirmed together with surface treatment, expected batch quantity, machining structure and customer assembly requirements.
Key Manufacturing Requirements
| Requirement | Why It Matters |
|---|---|
| 4-Hole Pattern | Controls mounting compatibility with the socket side |
| Interface Geometry | Affects connection with pyramid, receiver or sliding structures |
| Thread Quality | Important for screw locking and repeated assembly |
| Surface Finish | Improves appearance, edge condition and customer acceptance |
| Batch Consistency | Keeps repeat orders stable and reduces assembly variation |

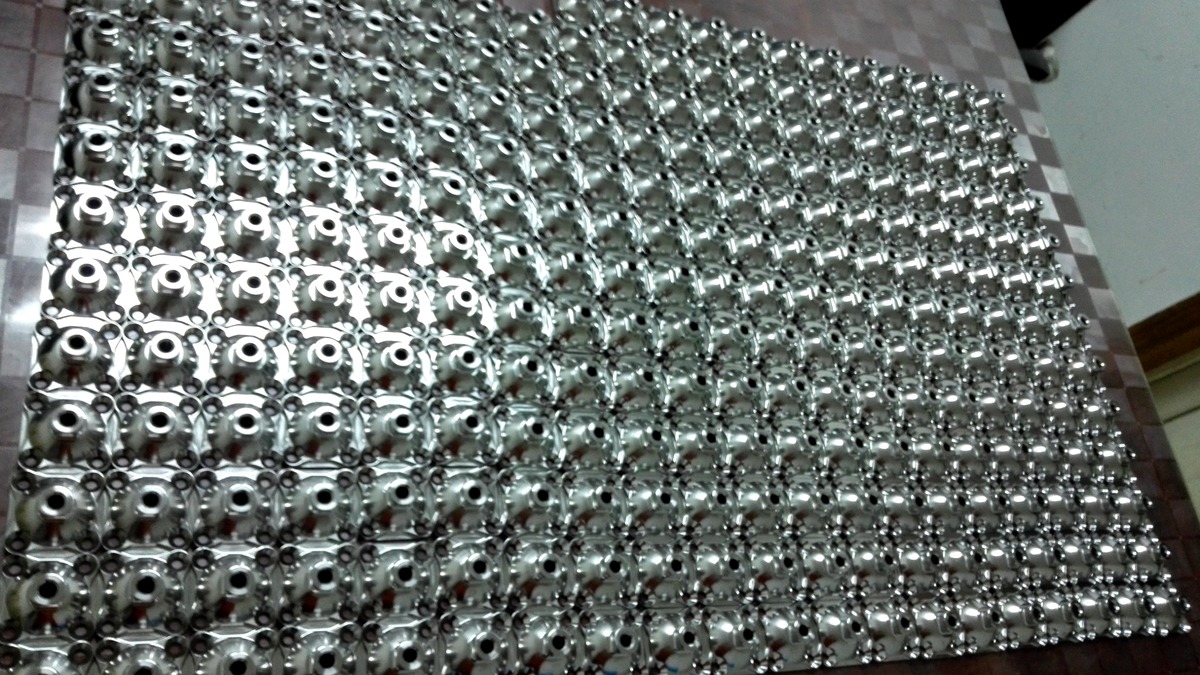

CNC Machining Considerations
4-hole socket adapters often require milling, drilling, tapping, contour machining and surface finishing. If the adapter includes a pyramid or receiver structure, additional machining steps may be needed to control the interface geometry accurately.
For designs with sliding or rotating functions, the machining process should also control contact surfaces, slots, moving areas and screw locations. These features need careful inspection because they affect adjustment and assembly.
Surface Finishing Options
Surface finish requirements may vary by customer and market. Some socket adapters only require a clean machined finish, while others may need polishing, blasting, anodizing, black surface treatment or other finishing processes.
Before production, buyers should confirm whether the finish is mainly functional, cosmetic or both. For prosthetic components, consistent appearance is often important for repeat orders.
Buyer Note
When ordering 4-hole socket adapters, provide the 2D drawing, 3D file, material grade, surface finish, quantity and mating component information if available. This helps the supplier review fit, machining feasibility and inspection requirements before production.
Custom 4-Hole Socket Adapters from Sunrise Industrial
Sunrise Industrial manufactures custom 4-hole socket adapters, prosthetic adapters, tube clamp adapters, foot adapters, receivers, pyramid adapters and modular prosthetic components according to customer drawings and samples. We support titanium, stainless steel and aluminum CNC machining with surface finishing and inspection based on project requirements.
