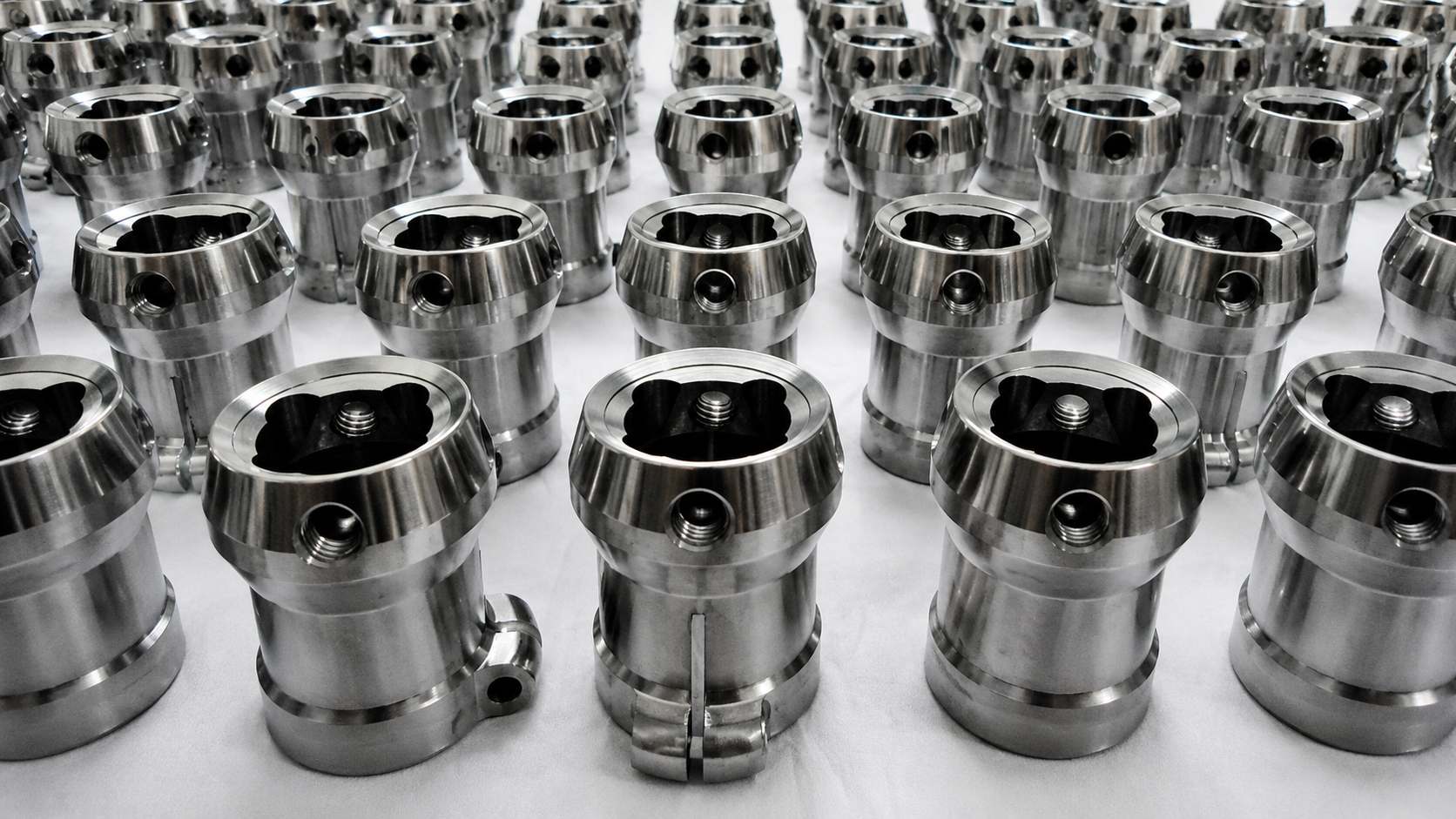

Heavy duty tube clamp adapters are designed for modular prosthetic systems that require reliable structural connections and stable tube fixation. Compared with standard tube clamp adapters, heavy duty versions typically feature reinforced structures, optimized clamping geometry and larger contact areas to improve overall assembly stability.
As an OEM CNC machining manufacturer, Sunrise Industrial produces heavy duty tube clamp adapters according to customer drawings, supporting titanium, stainless steel and aluminum materials for custom prosthetic component projects.
What Is a Heavy Duty Tube Clamp Adapter?
A heavy duty tube clamp adapter connects a prosthetic tube or pylon to other modular prosthetic components while providing higher structural rigidity than standard clamp designs. Depending on customer requirements, these adapters may incorporate pyramid interfaces, receivers, sliding mechanisms or custom connection features.
Heavy duty versions are commonly selected when designers require increased structural support, larger clamping areas or customized geometries for demanding prosthetic assemblies.
Typical Design Features
| Feature | Purpose |
|---|---|
| Reinforced Clamp Body | Provides additional structural strength |
| Precision Tube Bore | Ensures accurate tube positioning |
| High Precision Threads | Supports reliable fastener installation |
| Custom Interfaces | Compatible with customer-specific modular systems |
Material Selection
Heavy duty tube clamp adapters can be machined from titanium alloys, stainless steel or aluminum depending on the product design and customer specifications.
Titanium is frequently selected where lightweight construction and corrosion resistance are important. Stainless steel provides excellent durability, while aluminum is often used for lightweight custom assemblies requiring efficient machining.

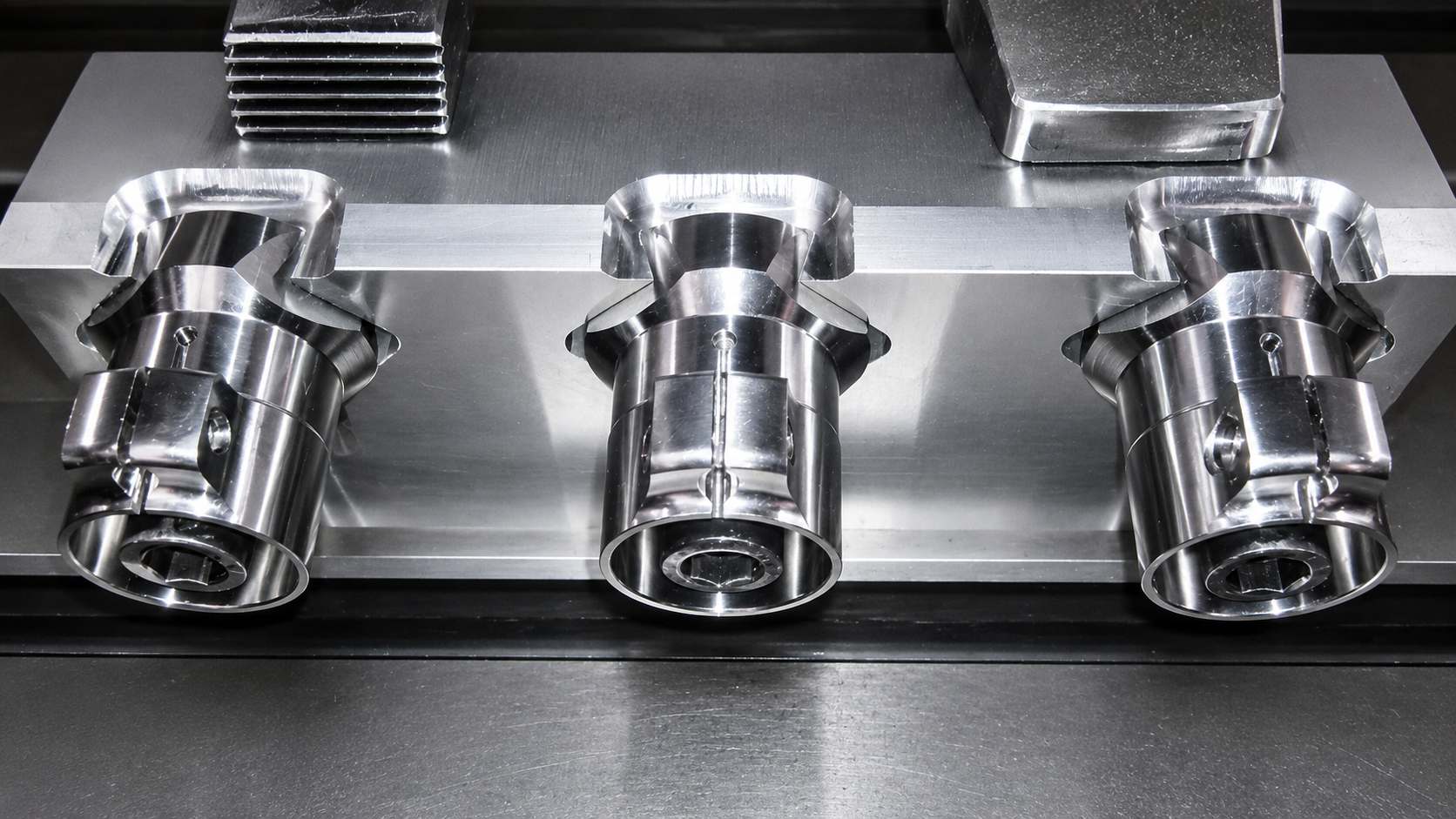

Precision CNC Manufacturing
Because tube clamp adapters contain precision bores, clamping slots, threaded holes and mating interfaces, CNC machining accuracy directly affects component consistency and assembly quality.
Typical manufacturing processes include CNC turning, CNC milling, drilling, tapping, precision inspection and surface finishing. Production fixtures are often used to improve dimensional repeatability during batch manufacturing.
Manufacturing Focus Areas
| Process | Importance |
|---|---|
| Tube Bore Machining | Supports accurate tube fit |
| Slot Milling | Maintains uniform clamping performance |
| Thread Processing | Improves assembly reliability |
| Dimensional Inspection | Ensures batch consistency |
Surface Finishing Options
Surface treatments may include glass bead blasting, polishing, anodizing for aluminum components, black surface finishing or other customer-specified processes. Surface appearance should remain consistent while preserving critical dimensions and threaded features.
Each finishing process should be selected according to the product material, application environment and customer requirements.
RFQ Recommendation
When requesting a quotation for heavy duty tube clamp adapters, provide the 2D drawing or 3D model, material specification, required surface finish, annual quantity, tube diameter, assembly interface details and inspection requirements. Complete engineering information helps improve quotation accuracy and production efficiency.
Custom Heavy Duty Tube Clamp Adapters from Sunrise Industrial
Sunrise Industrial manufactures custom heavy duty tube clamp adapters, prosthetic tube adapters, pyramid adapters, receivers, sliding adapters, prosthetic pylons and other modular prosthetic components according to customer drawings. Our CNC machining capabilities support prototype development, small production runs and volume manufacturing with consistent quality control.
Need Custom Heavy Duty Tube Clamp Adapters?
Whether you require titanium, stainless steel or aluminum heavy duty tube clamp adapters, Sunrise Industrial provides precision CNC machining according to your drawings and specifications.
