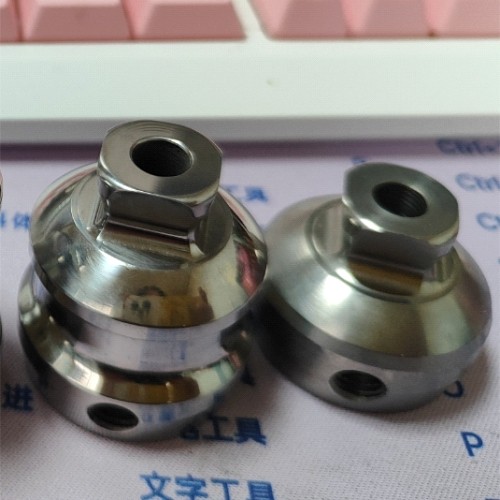

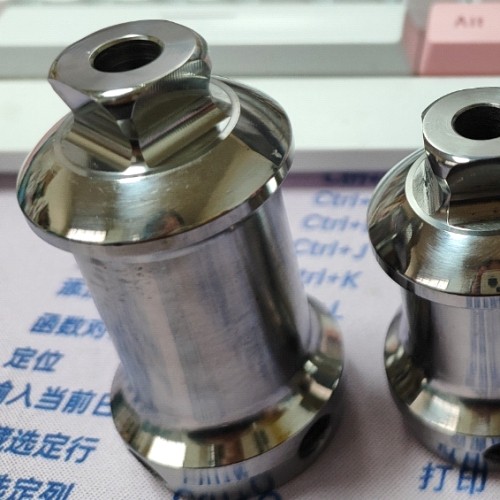

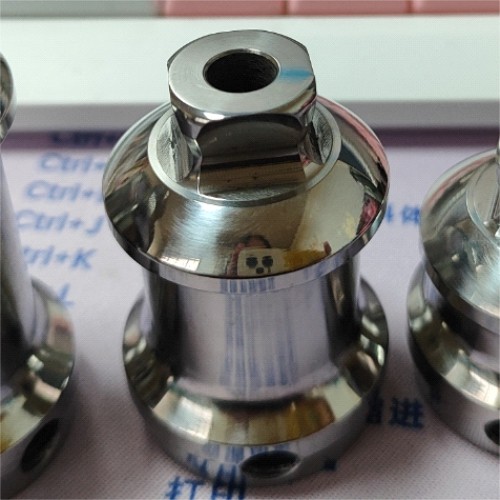

Double Ended Adapter with Pyramid and Central Hole
Precision double-ended adapter with pyramid and central hole for lower-limb prosthetic systems, available in 32mm, 45mm, 60mm and 75mm options.
Drawings welcome (STEP / IGS / PRT / PDF).
Reply within 24 hours.
- Specification
Double Ended Adapter with Pyramid and Central Hole
Precision-machined double ended adapter with pyramid and central hole for lower-limb prosthetic systems, supporting modular connection, pyramid alignment and drawing-based assembly requirements.
Sunrise Industrial manufactures double ended adapters with pyramid and central hole for prosthetic component applications requiring stable structural connection, modular assembly and practical installation in lower-limb prosthetic systems. The central hole version is used when the pyramid interface requires an additional through-hole or central-hole design according to the customer drawing.
This component may also be described as a double-ended adapter with pyramid and central hole, double ended adapter with pyramid through hole, double ended adapter with pyramid hole, or 32mm / 45mm / 60mm / 75mm double ended adapter with pyramid and central hole. It can be manufactured in titanium, stainless steel or other suitable materials according to drawings, samples and project-specific requirements.
Product Overview
Pyramid with Central Hole
The pyramid interface includes a central hole or through-hole feature according to the customer drawing, supporting specific modular prosthetic assembly requirements.
Project-Based Production
This product is normally supplied for custom orders, replacement projects or small-quantity requirements rather than as a high-volume regular stock item.
Key Features
- Double ended adapter structure with pyramid and central hole
- Suitable for lower-limb prosthetic component systems
- Available as 32mm, 45mm, 60mm, 75mm or drawing-based custom height
- Designed for modular alignment and reliable structural assembly
- Central hole or through-hole detail can be made according to drawings
- Available in titanium, stainless steel and custom material options
- Precision CNC-machined dimensions for stable fit and assembly
- Suitable for custom, small-quantity and OEM prosthetic component projects
Custom Manufacturing and Specifications
We manufacture double ended adapters with pyramid and central hole according to customer drawings and project requirements. Customization may include overall height, pyramid geometry, central hole diameter, through-hole requirement, receiver details, screw holes, thread details, material selection, surface finish, marking and packaging.
| Product Type | Double Ended Adapter with Pyramid and Central Hole / Double-Ended Adapter with Pyramid Through Hole / Prosthetic Double Ended Adapter with Pyramid Hole |
|---|---|
| Common Search Terms | double ended adapter with pyramid central hole, double ended adapter with pyramid through hole, 32mm / 45mm / 60mm / 75mm double ended adapter with pyramid and central hole |
| Application | Lower-limb prosthetic modular connection, alignment and structural support applications |
| Height Options | 32mm, 45mm, 60mm, 75mm and custom heights according to drawings |
| Central Hole | Hole diameter, position and through-hole details should follow the customer drawing or sample |
| Available Materials | Titanium, stainless steel and other suitable materials according to project requirements |
| Manufacturing Method | Precision CNC machining based on customer drawings, samples and technical requirements |
| Customization | Height, pyramid geometry, central hole, receiver details, screw holes, thread details, material, finish, marking and packaging |
| Production Basis | 3D files, 2D drawings, samples, dimensional requirements and project-specific specifications |
Applications and Quality Control
Double ended adapters with pyramid and central hole are used in lower-limb prosthetic systems where pyramid connection, modular alignment, central-hole design and stable structural support are required.
- Lower-limb prosthetic component systems
- Double ended adapter with pyramid and central hole applications
- 32mm / 45mm / 60mm / 75mm adapter projects
- Custom prosthetic alignment components
- OEM prosthetic component supply
- Small-quantity custom prosthetic hardware projects
Quality control covers raw material selection, dimensional inspection, pyramid geometry, central hole diameter and position, receiver fit, screw hole position, thread quality, surface finish and final appearance review.
For custom double ended adapters with pyramid and central hole, accurate hole machining and repeatable assembly fit are important, even when order quantity is not large.
Prosthetic Components Manufacturing Range
In addition to double ended adapters with pyramid and central hole, Sunrise Industrial manufactures a range of prosthetic adapter components for socket connection, tube connection, receiver connection, pyramid connection, foot connection and modular assembly applications.
This representative display image is used to show our overall prosthetic component manufacturing range and machining experience. The final product structure, dimensions, material and finish should always follow the customer drawing and project requirements.
Why Choose Sunrise Industrial
Sunrise Industrial has practical manufacturing experience in prosthetic components and precision CNC-machined metal parts. We support drawing-based production for customers requiring double ended adapters with pyramid and central hole and related lower-limb prosthetic components.
For customers looking for dependable manufacturing support, we provide flexible custom production, responsive communication, drawing review support and consistent product quality for prosthetic component requirements.
Frequently Asked Questions
What is a double ended adapter with pyramid and central hole used for?
It is used in lower-limb prosthetic systems where pyramid connection, modular alignment, central-hole design and structural support are required.
What is the difference from the standard version?
The standard version does not normally include the central hole on the pyramid. This version includes a central hole or through-hole feature according to drawings.
What height options are available?
Common descriptions include 32mm, 45mm, 60mm and 75mm double ended adapter with pyramid and central hole. Custom heights can also be reviewed according to drawings.
Can the central hole diameter be customized?
Yes. Hole diameter, position, depth or through-hole requirement should follow the customer drawing or sample.
What materials are available?
We can manufacture this product in titanium, stainless steel and other suitable materials according to project requirements.
Can this product be manufactured according to drawings?
Yes. We support custom production based on 3D files, 2D drawings, samples and project-specific technical requirements.
What drawing formats can you review?
3D files and 2D drawings are welcome, including STEP/STP, IGS, X_T, SLDPRT, PRT and PDF. Other common drawing formats may also be reviewed if available.
Need a Quotation for Double Ended Adapters with Pyramid and Central Hole?
Send us your drawing, height requirement, pyramid details, central hole diameter, material, quantity or application information for quotation. We support custom double ended adapter with pyramid and central hole manufacturing for prosthetic component projects.
3D files and 2D drawings welcome: STEP/STP, IGS, X_T, SLDPRT, PRT, PDF and more.
Manufacturing Support for Double Ended Adapters with Pyramid and Central Hole
Sunrise Industrial supports precision CNC machining for double ended adapters with pyramid and central hole, including 32mm, 45mm, 60mm, 75mm and drawing-based custom versions for small-quantity prosthetic component projects.
Central Hole Detail
Hole diameter, depth, through-hole requirement and position can be machined according to drawings or samples.
Pyramid Geometry
We pay attention to pyramid geometry, height, receiver fit and repeatable assembly performance.
Small-Quantity Support
This product is normally project-based. We can support samples and small-quantity orders according to requirements.
Material Options
Titanium, stainless steel and other suitable materials can be selected according to strength, weight and cost requirements.
Send us your drawing, central hole size, height requirement, pyramid details, material, quantity and delivery schedule. We will review machining feasibility and provide a practical quotation for your double ended adapter with pyramid and central hole project.
