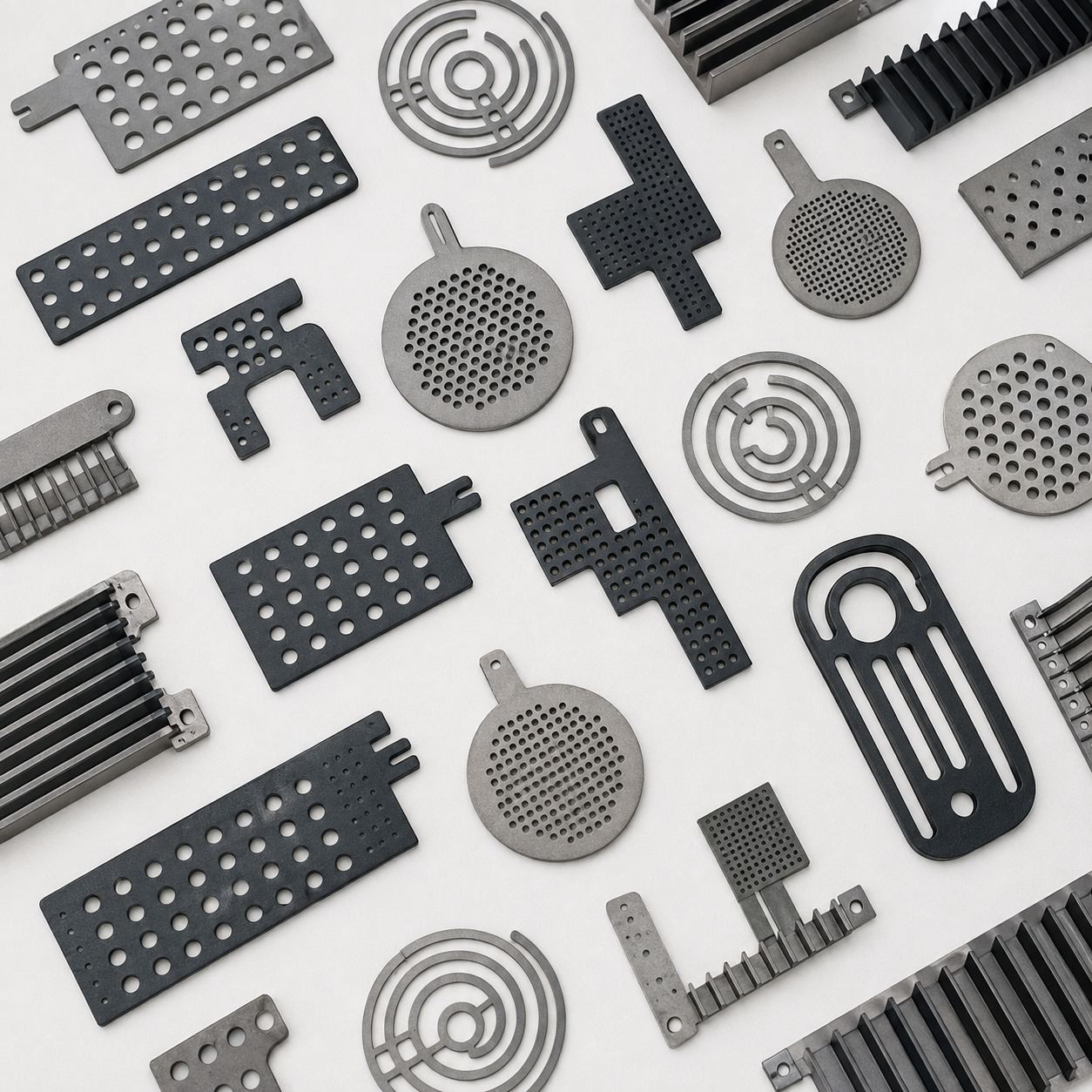

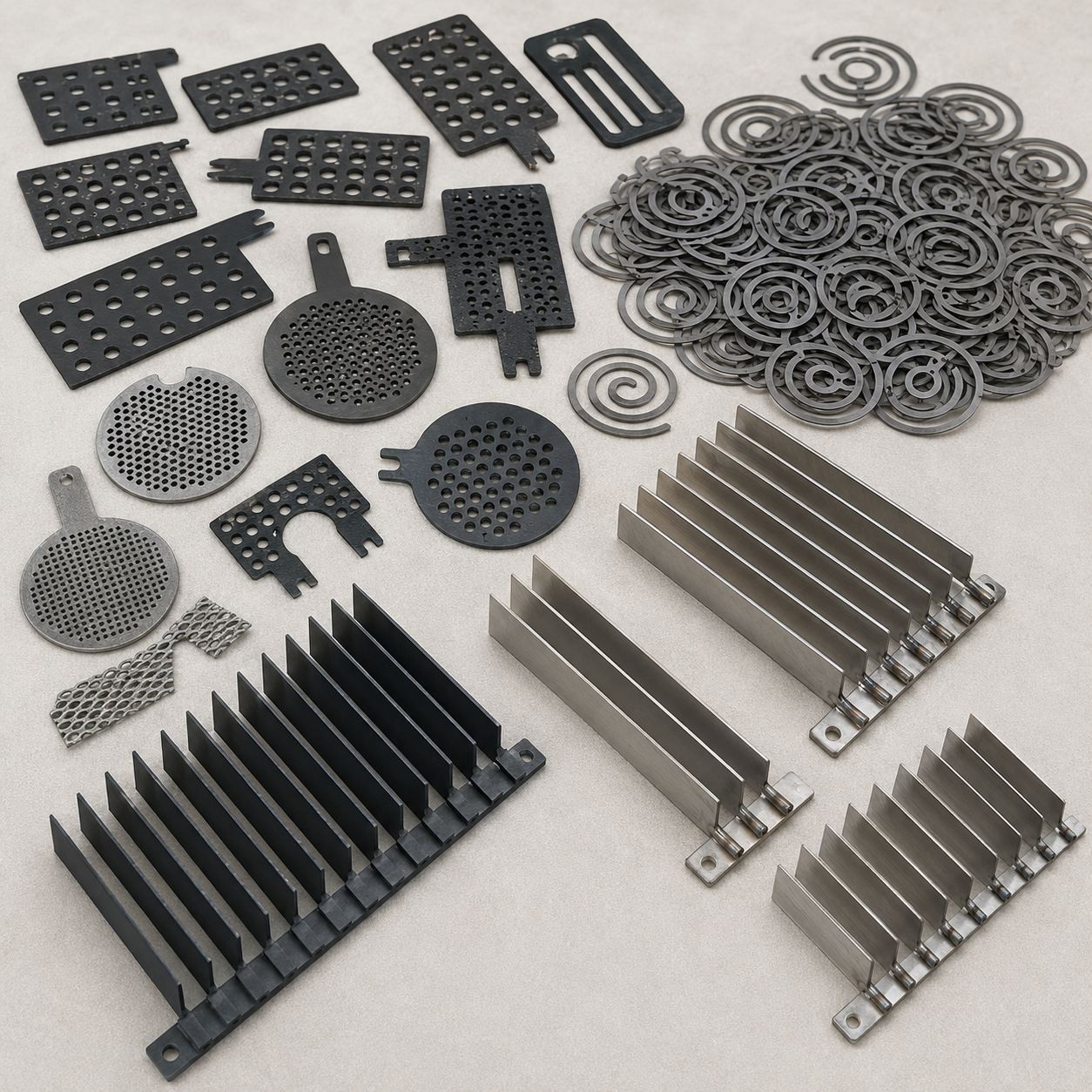

Custom-Shaped Titanium Anodes
Custom-shaped titanium anodes manufactured from drawings or samples, including rings, perforated plates, formed parts and fabricated assemblies with coating support.
Drawings welcome (STEP / IGS / PRT / PDF).
Reply within 24 hours.
- Specification
Custom-Shaped Titanium Anodes
Many titanium anodes are not standard rod, tube, plate or mesh products. Sunrise Industrial supports drawing-based manufacturing of custom-shaped titanium anodes, substrates and assemblies according to customer drawings, samples and technical specifications.
Custom geometries can include rings, perforated plates, curved parts, formed electrodes, machined profiles, welded structures and multi-component assemblies. Our supply scope can include titanium material, CNC machining, laser cutting, forming, welding, coating coordination and final assembly.

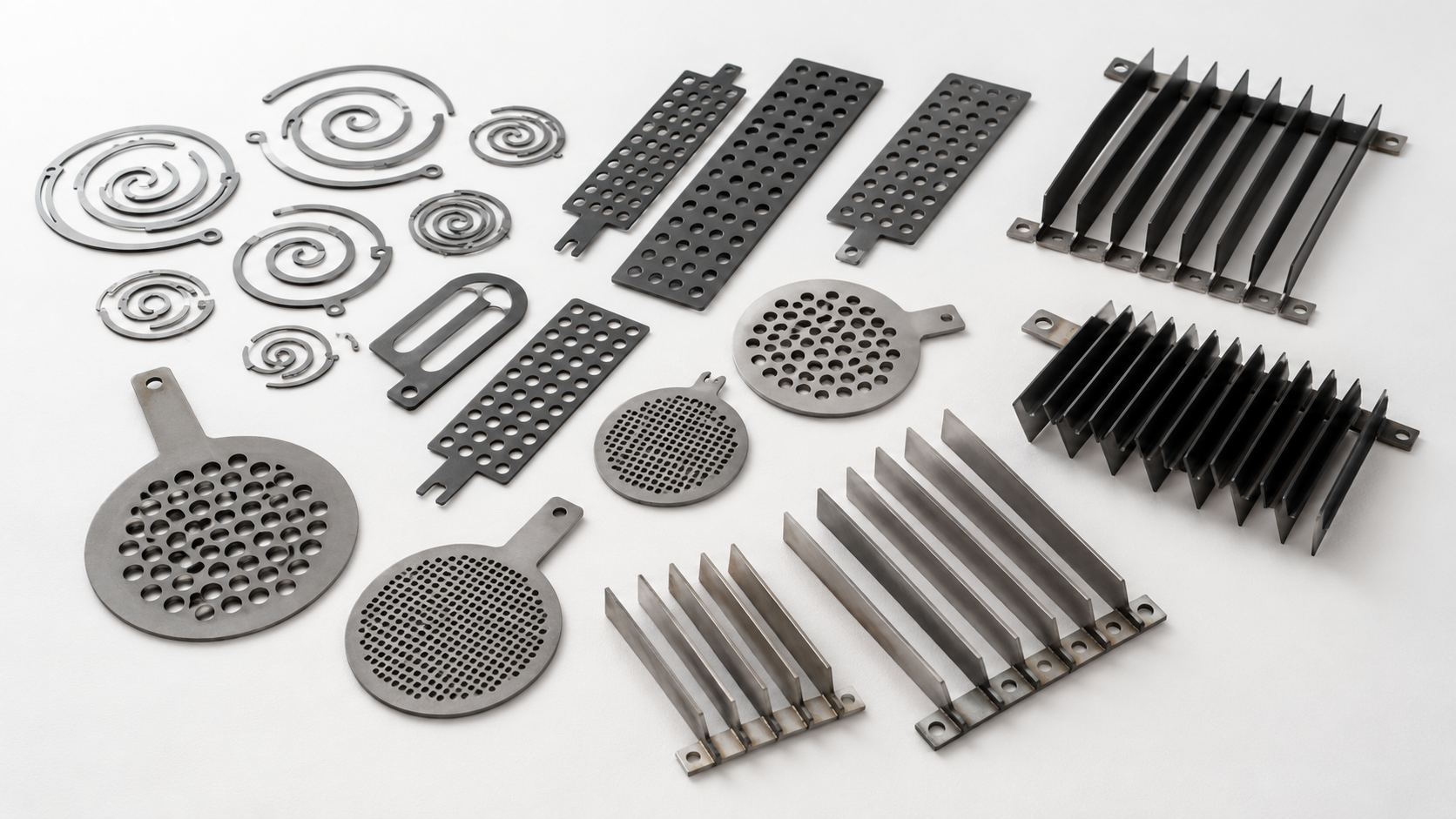

Custom Titanium Anode Configurations
Ring & Circular Anodes
Circular plates, rings and annular titanium substrates can be produced with custom diameters, holes and connection features.
Perforated Titanium Anodes
Custom hole patterns, open areas and mounting features can be produced according to customer drawings.
Formed & Bent Anodes
Titanium sheet and plate components can be bent or formed into customized three-dimensional geometries.
Machined Titanium Anodes
CNC turning, milling, drilling, threading and custom machining can be applied to titanium substrates and connection components.
Welded Anode Structures
Titanium plates, rods, mesh, tubes and brackets can be welded together according to the required assembly design.

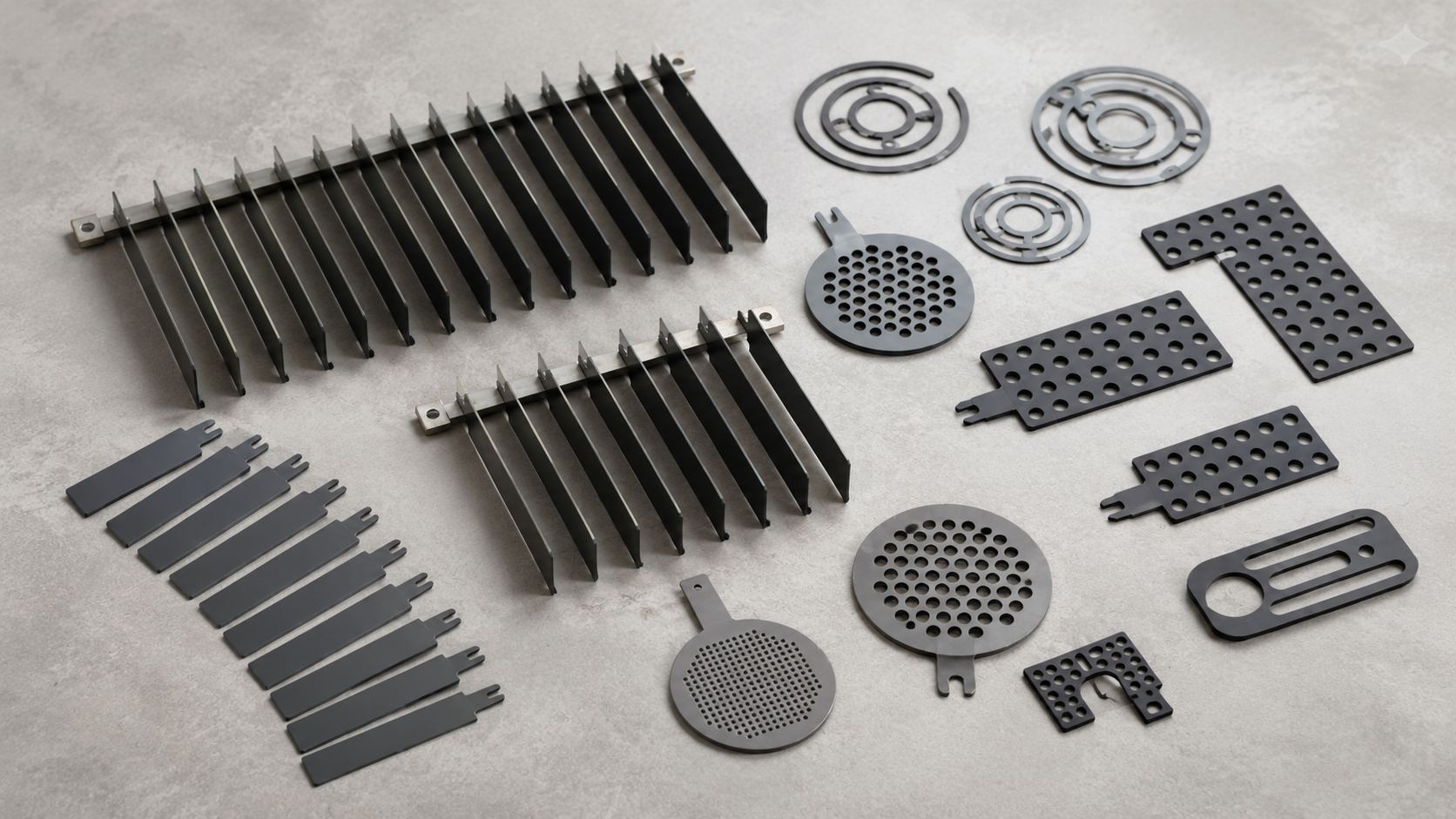

Complete OEM Assemblies
Multi-component titanium anodes can be fabricated, coated and assembled as complete OEM products.
Designed Around Your Drawing
Custom-shaped titanium anodes are normally manufactured around the dimensions, installation space and connection requirements of the customer's equipment.
Instead of selecting only from standard electrode forms, the titanium substrate can be designed and fabricated to match the required geometry.
- Custom outer profiles and dimensions
- Holes, slots and perforated patterns
- Curved and formed surfaces
- Welded tabs, brackets and terminals
- Machined connection features
- Defined active coating areas
Custom Manufacturing Capabilities
Laser Cutting
Titanium sheet and plate can be cut into custom profiles, holes, slots, rings and other complex geometries.
CNC Machining
Precision turning, milling, drilling and threading can be used for substrates and connection components.
Forming & Bending
Titanium plate, strip and other components can be formed or bent according to the required three-dimensional shape.
Welding & Assembly
Titanium substrates can be combined with rods, mesh, brackets, tabs and other parts to form customized anode assemblies.
Coating Coordination
MMO and platinum coating requirements can be arranged according to the specified active areas and project requirements.
Inspection & OEM Supply
Finished products can be inspected according to drawings and supplied as individual components, sub-assemblies or complete OEM units.
Coating Options for Custom Titanium Anodes
Custom-shaped substrates can be supplied with different electrochemical coating systems according to customer specifications, operating conditions and required active areas.
Ruthenium-Based Coating
Available for customized titanium substrates according to the specified coating and operating requirements.
Ruthenium & Iridium MMO
Custom coating area and substrate configuration can be supplied according to project specifications.
Iridium & Tantalum MMO
Available for custom anode designs requiring defined active areas and electrochemical performance.
Platinized Titanium
Platinum coating can be arranged for projects specifically requiring platinized titanium substrates.
Custom Titanium Anode Options
| Item | Available Options |
|---|---|
| Titanium Material | Grade 1, Grade 2 or other titanium grades according to customer specification. |
| Product Geometry | Ring, circular, rectangular, perforated, formed, curved or fully custom shapes. |
| Manufacturing | Laser cutting, CNC machining, drilling, forming, bending, welding and assembly. |
| Connection Features | Tabs, brackets, rods, terminals, threads, holes or other customized connection designs. |
| Coating | Ruthenium, ruthenium-iridium, iridium-tantalum MMO, platinum or other specified electrochemical coatings. |
| Coated Area | Full surface, partial coating or defined active areas according to drawings. |
| Supply Form | Titanium substrate, coated component, sub-assembly or complete finished anode. |
From Titanium Substrate to Finished Anode
Custom projects may require several manufacturing steps before final delivery. Depending on the design, Sunrise Industrial can coordinate titanium material preparation, machining, fabrication, welding, coating and assembly to simplify the OEM supply process.
Applications of Custom Titanium Anodes
Water & Wastewater Treatment
Drawing-based titanium electrodes can be manufactured for customized electrochemical water and wastewater treatment equipment.
Electrolysis & Electrochemical Systems
Custom shapes and connection structures can be supplied for specialized electrolytic and electrochemical equipment.
Medical & Specialized Equipment
Titanium electrode components and assemblies can be manufactured according to OEM equipment drawings and technical requirements.
Industrial OEM Equipment
Custom anodes can be produced for equipment where standard rod, plate, tube or mesh configurations do not meet installation requirements.
Quality & Inspection
Custom titanium anodes are manufactured according to customer drawings and agreed technical specifications. Overall dimensions, hole positions, machined features, formed geometry and assembly dimensions can be inspected according to project requirements.
Material certification, dimensional inspection reports and other project-specific quality documentation can be provided. Coating inspection and testing requirements can also be coordinated according to the agreed specification.
Why Sunrise Industrial?
Drawing-Based Manufacturing
Custom anodes can be manufactured from drawings, 3D models, technical specifications or samples.
Titanium Processing Experience
Experience in titanium material supply, CNC machining, laser cutting, forming and fabrication.
Flexible Manufacturing
Support for prototypes, small quantities, special designs and repeat OEM production.
Integrated Supply
Titanium fabrication, coating coordination, inspection and assembly can be managed through one supply channel.
Have a Custom Titanium Anode Design?
Send us your drawing, titanium grade, dimensions, coating requirement, application details and quantity. We will review the manufacturing feasibility and supply requirements for your project.
3D files and 2D drawings welcome: STEP/STP, IGS, X_T, SLDPRT, PDF and more.
Manufacturing Support for Custom-Shaped Titanium Anodes
Sunrise Industrial supports drawing-based titanium anode projects requiring non-standard shapes, machining, forming, welding, coating coordination and complete OEM assembly.
Drawing-Based Custom Shapes
Rings, perforated plates, curved parts, machined profiles and other non-standard titanium anodes can be produced from drawings.
Multiple Manufacturing Processes
CNC machining, laser cutting, bending, forming and welding can be combined according to the required product design.
Coating & Assembly Support
Defined active areas, MMO coating requirements and final assembly can be coordinated according to project specifications.
Prototype to Repeat Production
We support samples, trial quantities, special OEM projects and repeat batch production.
