Titanium Plate Anodes
Custom titanium plate anodes made to drawings with laser cutting, CNC machining, drilling, forming, welding and MMO or platinum coating options.
Drawings welcome (STEP / IGS / PRT / PDF).
Reply within 24 hours.
- Specification
Custom Titanium Plate Anodes

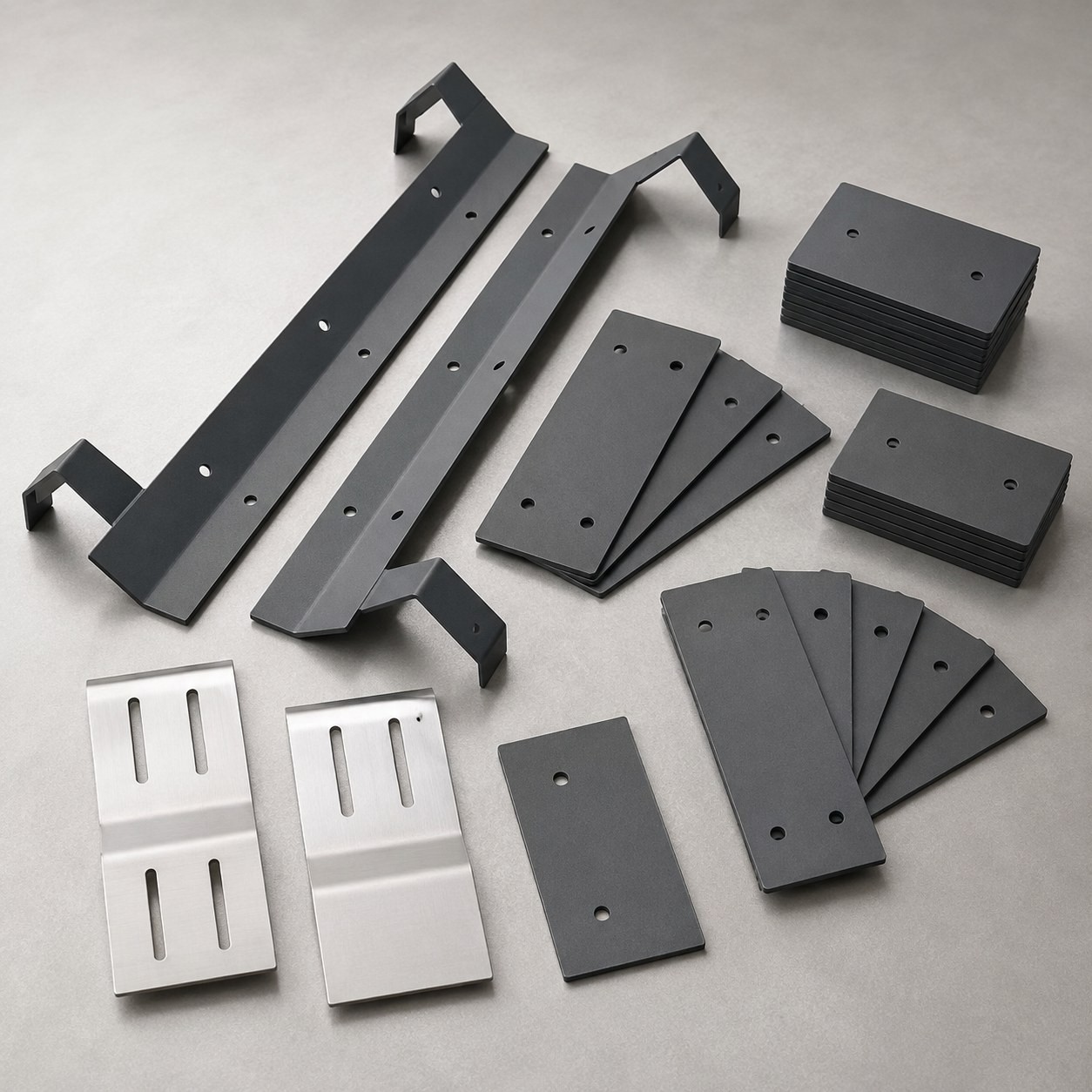

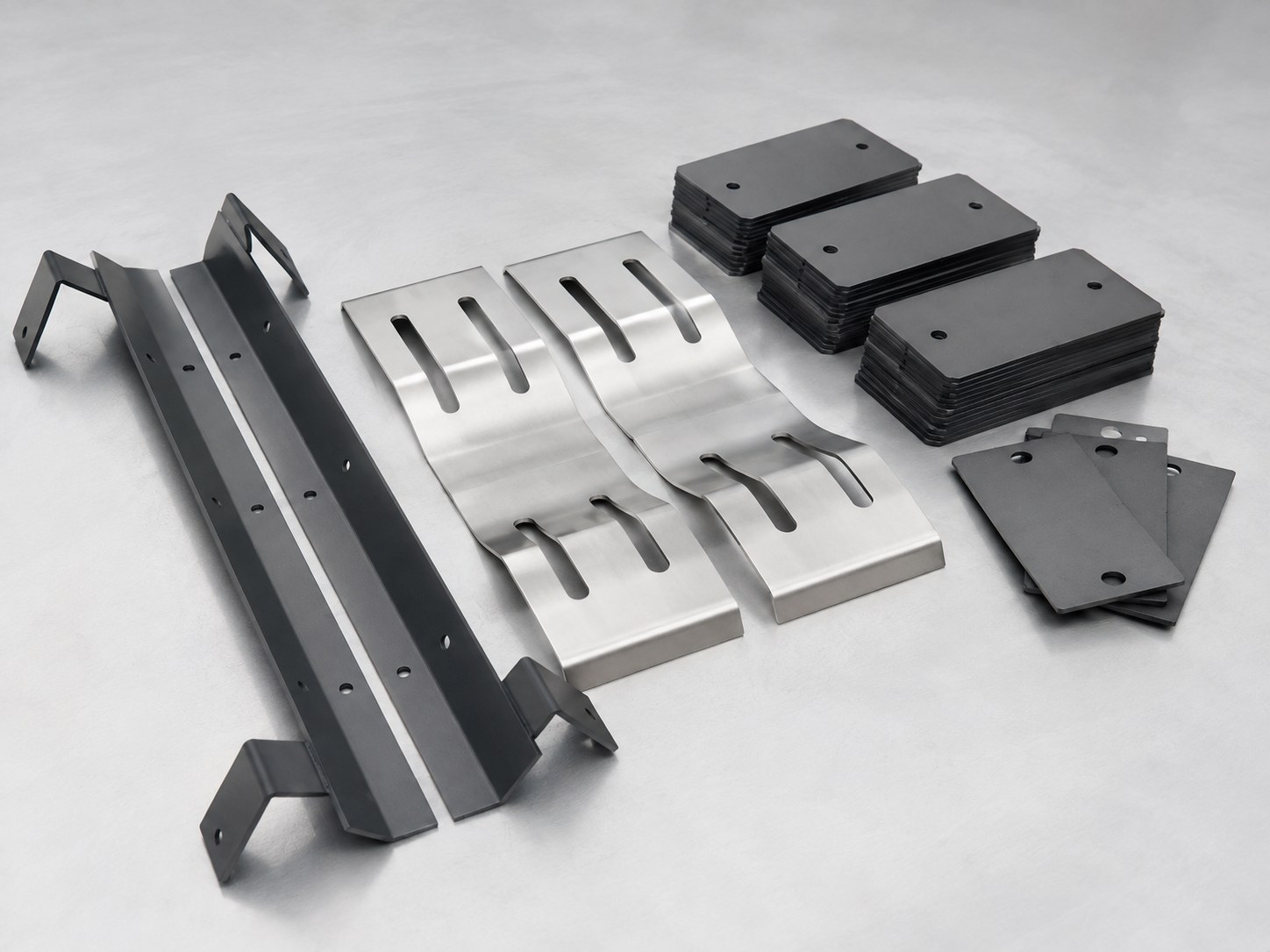

Sunrise Industrial supplies custom titanium plate anodes manufactured according to customer drawings, samples and technical specifications. Titanium plate substrates can be produced in rectangular, circular, ring-shaped and other customized geometries with holes, slots, connection tabs and machined features.
Our supply scope can include titanium plate preparation, laser cutting, CNC machining, drilling, forming, welding, assembly and electrochemical coating coordination. Uncoated titanium substrates and complete coated anodes can both be supplied for OEM projects.
Titanium Plate Anode Features
Custom Plate Shapes
Rectangular, circular, ring-shaped and other custom profiles can be produced according to equipment design and drawings.
Custom Thickness & Dimensions
Plate thickness, width, length, diameter and active surface area can be selected according to customer specifications.
Holes, Slots & Openings
Mounting holes, slots, center holes and custom openings can be produced by laser cutting, drilling or CNC machining.
Full or Partial Coating
The complete active surface or specifically defined areas can be coated while mounting and connection areas remain uncoated.
Welded Connection Tabs
Titanium tabs, rods, brackets and terminals can be welded to the plate substrate according to assembly requirements.
Drawing-Based OEM Supply
Products can be manufactured from customer drawings, STEP/STP models, samples and technical specifications.
Titanium Plate Anode Coating Options
Coating systems and active areas can be selected according to the operating environment, current density, required service life and customer specifications.
Plate Machining & Fabrication
Laser Cutting
Flat titanium sheets and plates can be cut into rectangular, circular, ring-shaped and other custom profiles with holes and slots.
CNC Machining
Precision surfaces, holes, counterbores, grooves and custom connection features can be machined according to drawings.
Forming & Bending
Titanium plate substrates can be bent or formed when the anode design requires curved or three-dimensional geometry.
Welding & Assembly
Connection tabs, titanium rods, brackets and other components can be welded or assembled with the plate to form finished anode units.
Custom Titanium Plate Anode Options
| Item | Available Options |
|---|---|
| Titanium Material | Grade 1, Grade 2 or other titanium grades according to customer specification. |
| Plate Shape | Rectangular, square, circular, ring-shaped, perforated or custom profiles. |
| Plate Thickness | Custom thickness according to structural, electrical and customer requirements. |
| Dimensions | Custom width, length, diameter and overall geometry. |
| Machined Features | Holes, slots, grooves, cutouts, counterbores, mounting features and custom profiles. |
| Coating | Ruthenium, ruthenium-iridium, iridium-tantalum MMO, platinum or other specified electrochemical coatings. |
| Coated Area | One side, both sides, full coating, partial coating or defined active areas. |
| Connection | Welded tab, rod, bracket, terminal, drilled mounting point or custom assembly. |
| Supply Form | Uncoated substrate, coated plate anode, sub-assembly or complete finished anode. |
Applications of Titanium Plate Anodes
Water & Wastewater Treatment
Coated titanium plate anodes can be supplied for electrochemical oxidation, wastewater treatment and related water processing equipment.
Electroplating Equipment
Custom plate electrodes can be manufactured for selected electroplating and surface-treatment systems according to customer technical requirements.
Electrolysis Systems
Flat and shaped titanium plate anodes can be integrated into customized electrolytic cells and industrial electrochemical equipment.
Custom OEM Equipment
Plate anodes with custom dimensions, holes, connections and active coating areas can be supplied for specialized OEM equipment.
Quality & Inspection
Titanium plate anodes are manufactured according to customer drawings and agreed technical specifications. Plate dimensions, thickness, hole positions, machined features and assembly dimensions can be inspected according to project requirements.
Material certificates, dimensional inspection reports and other project-specific quality documentation can be supplied when required. Coating inspection and testing requirements can also be coordinated according to the agreed specification.
Why Sunrise Industrial?
Titanium Fabrication Experience
Experience in titanium material supply, laser cutting, CNC machining, forming and fabrication of custom titanium products.
Custom Shapes & Features
Plate anodes can be manufactured directly from drawings with custom dimensions, profiles, holes and connection features.
Integrated Supply
Titanium plate preparation, fabrication, coating coordination, inspection and assembly can be managed through one supply channel.
Flexible OEM Production
Support for prototypes, sample quantities, small batches and repeat OEM production.
Looking for Custom Titanium Plate Anodes?
Send us your drawing, plate dimensions, titanium grade, coating requirement and quantity. We will review the fabrication, coating and assembly requirements for your project.
3D files and 2D drawings welcome: STEP/STP, IGS, X_T, SLDPRT, PDF and more.
Manufacturing Support for Custom Titanium Plate Anodes
Sunrise Industrial supports custom titanium plate anode projects from titanium sheet and plate fabrication to machining, coating coordination, welding, assembly and repeat OEM production.
Custom Plate Fabrication
Rectangular, circular, ring-shaped and other custom titanium plate geometries can be produced according to customer drawings and equipment requirements.
Machining & Forming
Holes, slots, cutouts, machined features, bending and forming can be added according to the required anode configuration.
Flexible Coating Areas
Full, partial, one-side or two-side coating requirements can be coordinated according to customer drawings and active-area specifications.
Complete OEM Supply
Coated plate anodes, welded connections, sub-assemblies and complete finished products can be supplied for repeat OEM projects.
