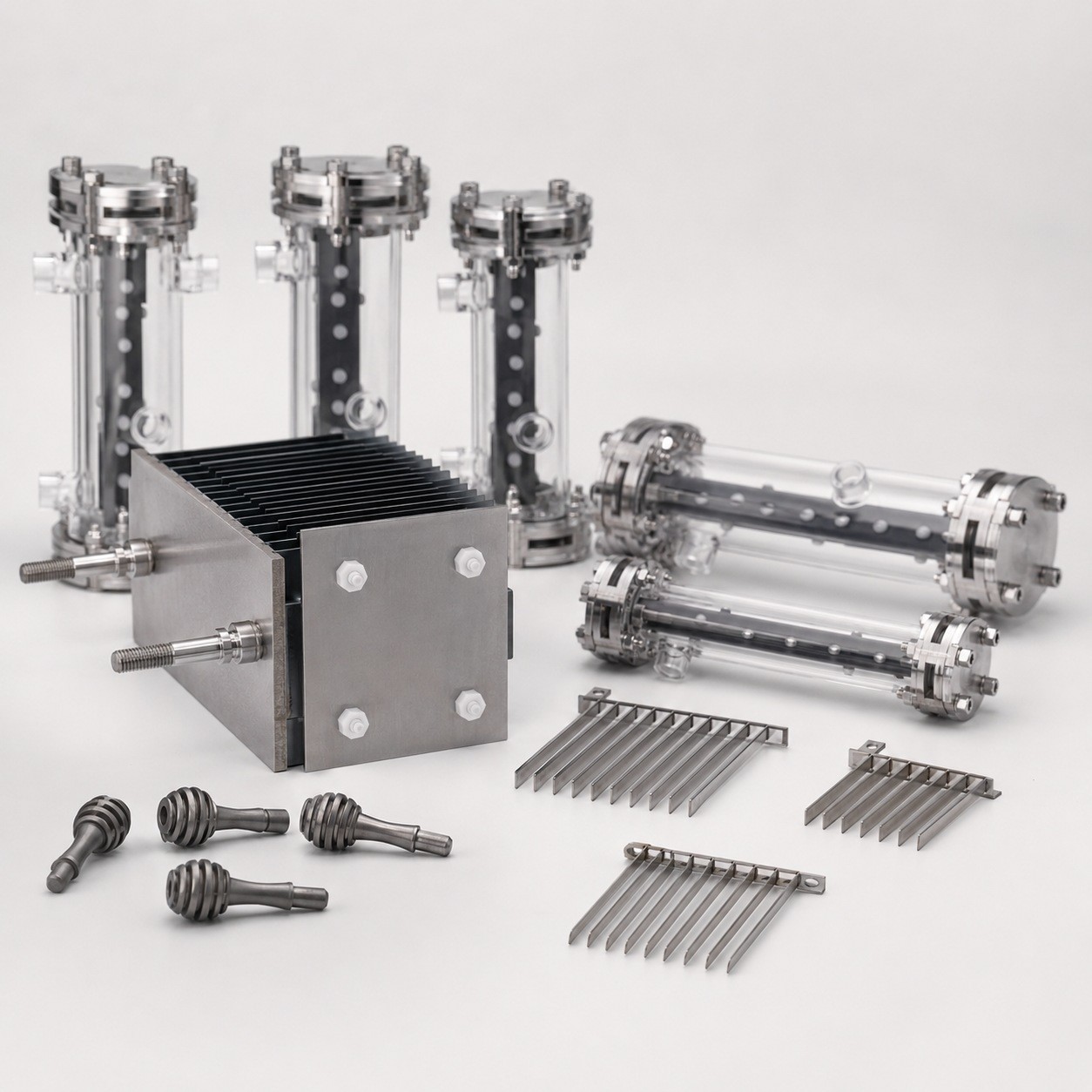

Titanium Anode Assemblies
Custom titanium anode assemblies combining rods, tubes, plates, mesh and machined components with fabrication, coating, welding, inspection and OEM assembly support.
Drawings welcome (STEP / IGS / PRT / PDF).
Reply within 24 hours.
- Specification
Custom Titanium Anode Assemblies
Sunrise Industrial supplies custom titanium anode assemblies manufactured according to customer drawings, samples and technical specifications. Assemblies can combine titanium rods, tubes, plates, mesh, machined components, connection parts and other fabricated titanium elements.
Depending on the project, our supply scope can include titanium material preparation, CNC machining, laser cutting, forming, welding, coating coordination, dimensional inspection and final mechanical assembly. Individual components, sub-assemblies and complete finished anodes can all be supplied.
Titanium Anode Assembly Configurations
Rod & Plate Assemblies
Machined titanium rods can be combined with flat, circular or custom-shaped plate electrodes and connection parts.
Tube Anode Assemblies
Titanium tubular substrates can include threaded ends, welded brackets, mounting parts and custom electrical connections.
Mesh Electrode Assemblies
Titanium mesh can be welded or assembled with rods, strips, frames and terminals to form complete electrode units.

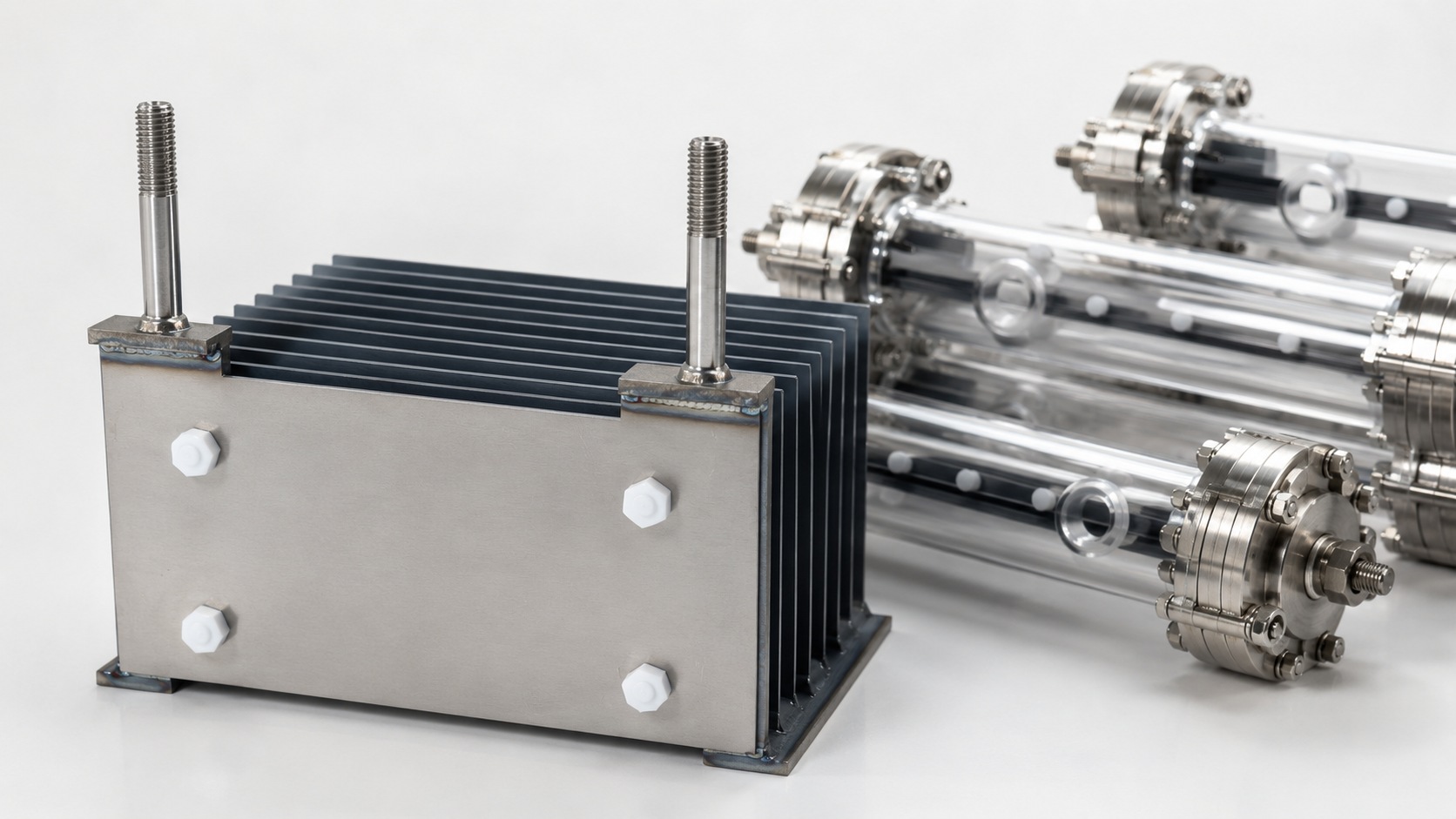

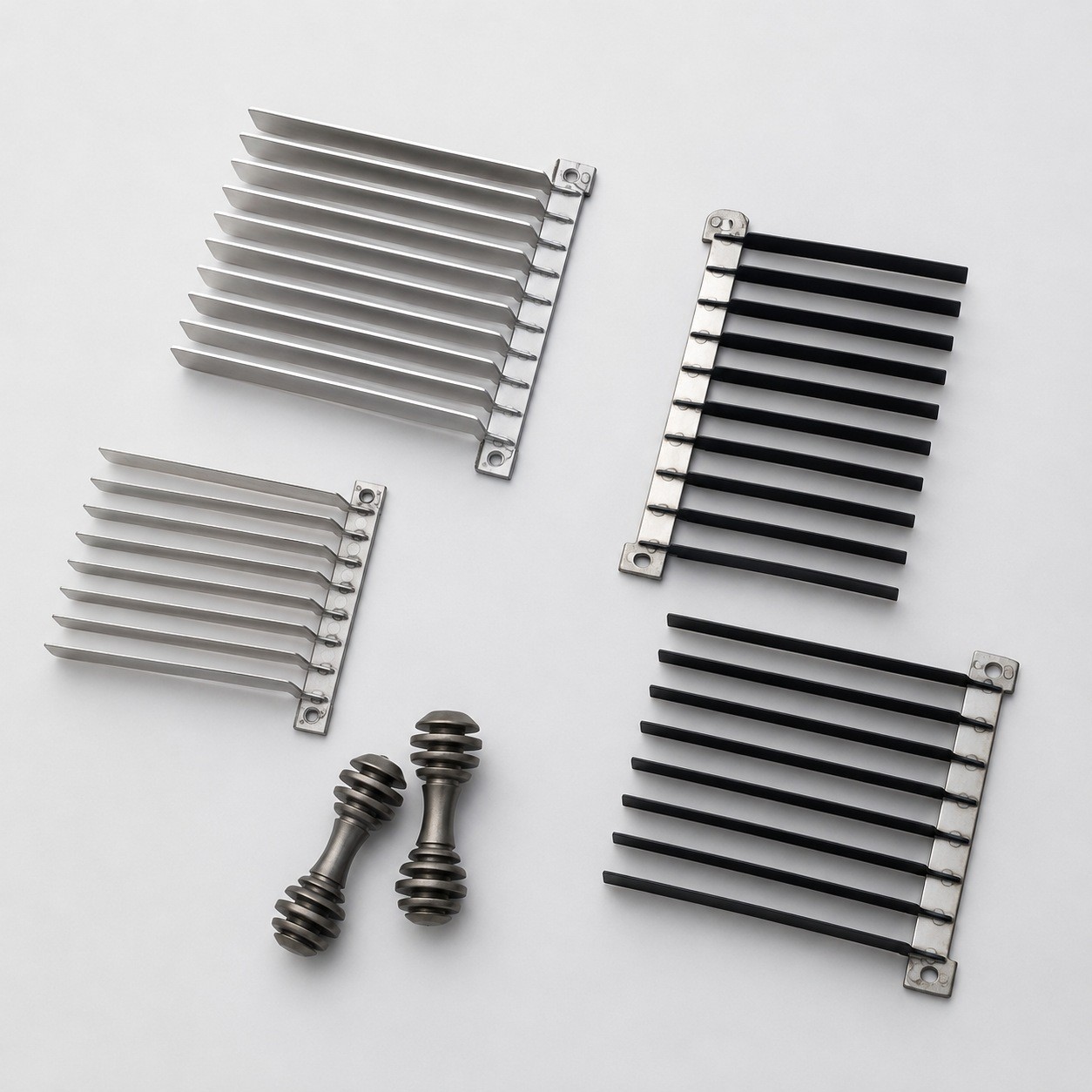

Multi-Plate Structures
Multiple titanium plates or blades can be arranged on shared supports according to the customer's equipment design.
Custom Connection Systems
Tabs, brackets, threaded parts, mounting holes and machined electrical connections can be integrated into the complete assembly.

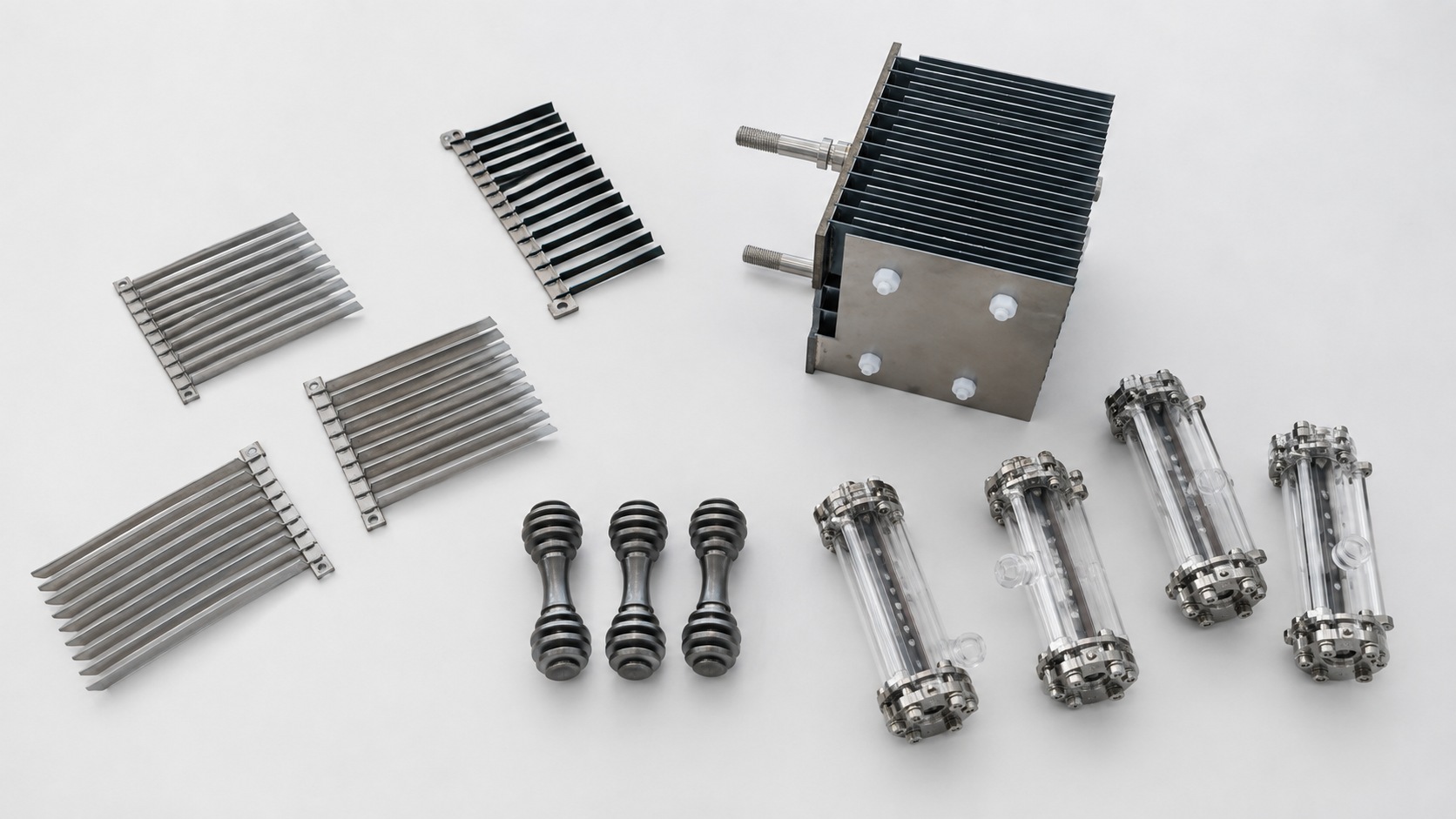

Drawing-Based OEM Units
Non-standard complete anode units can be fabricated according to customer 2D drawings, 3D models or samples.
Complete Supply from Components to Assembly
A complete titanium anode often consists of several parts rather than a single coated substrate. These components can be manufactured separately and then combined according to the customer's final assembly drawing.
- Titanium rods and tubes
- Flat and formed titanium plates
- Expanded titanium mesh
- Machined connection components
- Welded brackets and terminals
- MMO or platinum coated active areas
- Final dimensional inspection and assembly
Manufacturing & Assembly Capabilities
CNC Machining
Rods, tubes, mounting parts, threaded connections and other precision titanium components can be CNC machined according to customer drawings.
Laser Cutting & Fabrication
Titanium plates, strips, rings and custom profiles can be laser cut and fabricated for use in complete assemblies.
Forming & Bending
Plate, strip and mesh components can be formed or bent to match the required installation geometry.
Titanium Welding
Titanium components can be welded together where required by the customer's mechanical and electrical connection design.
Coating Coordination
Ruthenium, Ru-Ir, Ir-Ta MMO and platinum coating requirements can be coordinated according to the defined active areas and customer specifications.
Final Assembly & Inspection
Finished components can be assembled and inspected according to the agreed drawing and dimensional requirements.
Typical OEM Supply Process
Coating Options for Titanium Anode Assemblies
Different parts of a titanium anode assembly may require different coated and uncoated areas. Coating specifications can be coordinated according to customer drawings and electrochemical operating requirements.
Ruthenium-Based Coating
Available for specified titanium active areas according to customer electrochemical requirements.
Ruthenium & Iridium MMO
Custom coated areas can be supplied for drawing-based titanium anode assemblies.
Iridium & Tantalum MMO
Available according to required operating conditions, active area and customer coating specifications.
Platinized Titanium
Platinum coating can be arranged for projects specifically requiring platinized titanium electrodes.
Custom Titanium Anode Assembly Options
| Item | Available Options |
|---|---|
| Titanium Material | Grade 1, Grade 2 or other titanium grades according to customer specification. |
| Component Types | Rod, tube, plate, mesh, strip, ring, machined components and custom fabricated parts. |
| Manufacturing | CNC machining, laser cutting, drilling, threading, forming, bending and welding. |
| Connection Design | Welded, threaded, bolted, tab, bracket or other drawing-defined connections. |
| Coating | Ruthenium, ruthenium-iridium, iridium-tantalum MMO, platinum or specified electrochemical coating. |
| Coated Area | Full active surface, partial areas or drawing-defined coated zones. |
| Inspection | Dimensional inspection, material certification and project-specific quality documentation. |
| Supply Form | Individual components, sub-assemblies or complete finished titanium anode assemblies. |
Custom Assemblies for Different Equipment Designs
Titanium anode assemblies can vary significantly in size, shape, active surface area and connection structure. Sunrise Industrial supports drawing-based OEM supply rather than limiting customers to standard electrode configurations.
Applications of Titanium Anode Assemblies
Water & Wastewater Treatment
Complete titanium electrode assemblies can be supplied for customized electrochemical oxidation and water treatment equipment.
Electrolysis & Disinfection Systems
Multi-component anode units can be manufactured for electrolytic and electrochemical equipment according to customer drawings.
Medical & Specialized Equipment
Custom electrode components and complete assemblies can be produced for specialized OEM equipment where non-standard geometries are required.
Industrial OEM Systems
Titanium anode assemblies combining multiple machined and fabricated parts can be supplied for industrial electrochemical equipment.
Quality & Inspection
Titanium anode assemblies are manufactured according to customer drawings and agreed technical specifications. Individual component dimensions, connection locations, assembly geometry and overall dimensions can be inspected during production and final assembly.
Material certificates, dimensional inspection reports and other project-specific documentation can be provided. Coating inspection and additional testing can also be coordinated according to the agreed specification.
Why Sunrise Industrial?
Multiple Titanium Processes
CNC machining, cutting, forming, welding and assembly can be combined within one OEM project.
Drawing-Based Manufacturing
Products are manufactured according to customer drawings, 3D models and technical specifications.
Integrated Supply
Titanium components, coating coordination, inspection and final assembly can be managed through one supply channel.
Flexible OEM Production
Support for prototypes, trial orders, small batches and repeat production.
Need a Custom Titanium Anode Assembly?
Send us your drawing, titanium material requirements, coating specification, assembly details and quantity. We will review the manufacturing and supply requirements for your project.
3D files and 2D drawings welcome: STEP/STP, IGS, X_T, SLDPRT, PDF and more.
Manufacturing Support for Titanium Anode Assemblies
Sunrise Industrial supports multi-component titanium anode projects from individual titanium parts and fabrication to coating coordination, inspection and final OEM assembly.
Multi-Component Manufacturing
Rods, tubes, plates, mesh, brackets and machined titanium components can be produced according to the complete assembly drawing.
Fabrication & Welding
Cutting, forming, machining and titanium welding can be combined to manufacture complex anode structures and sub-assemblies.
Coating & Final Assembly
MMO or platinum coating requirements, defined active areas and final assembly can be coordinated according to project specifications.
Repeat OEM Supply
We support samples, trial production, small batches and repeat supply for custom titanium anode assembly projects.
