How to Submit Drawings for CNC Machining Quotation: A Complete Buyer's Guide

Obtaining an accurate CNC machining quotation starts before production begins. The quality of the information provided during the RFQ process directly affects pricing accuracy, lead time estimates, material recommendations and manufacturing feasibility review.

Many project delays happen because drawings are incomplete, specifications are unclear or important technical requirements are not communicated during the quotation stage.

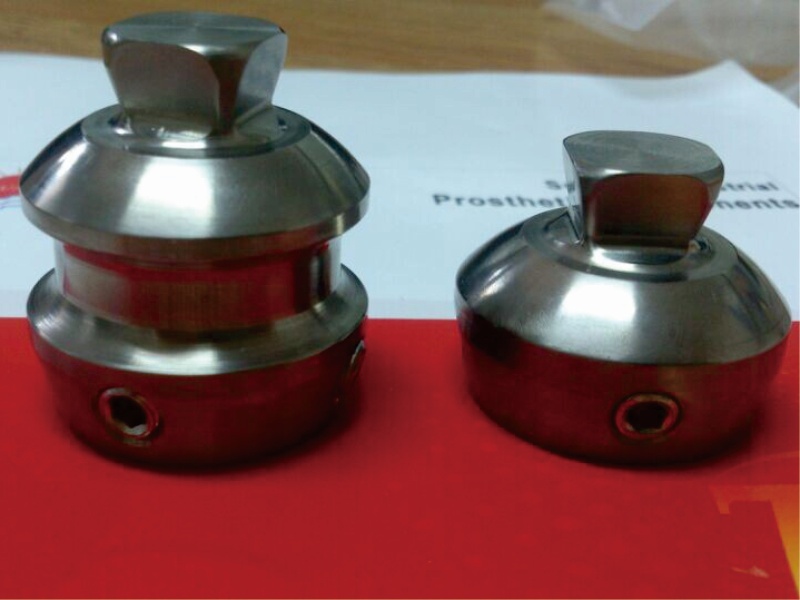

CNC machining quotation drawing review
Drawings Provide 2D drawings and 3D files whenever possible.
Material Confirm exact material grade and standard before quotation.
Quantity Share prototype quantity and future production forecast.
Finish Define surface finish, inspection and packaging requirements.

Why Complete RFQ Information Matters

A CNC machining quotation is more than a simple price calculation. Manufacturers evaluate material selection, machining complexity, tolerances, inspection requirements, surface finish, quantity and delivery expectations before quoting.

When critical information is missing, suppliers may need additional clarification before providing a price. In some cases, incomplete information can result in inaccurate pricing or unexpected manufacturing challenges later in the project.

A well-prepared RFQ package helps suppliers provide more accurate pricing, realistic lead times and practical manufacturing recommendations.

Essential Documents for a CNC Machining RFQ

The most effective RFQs usually include both technical drawings and supporting manufacturing information. Even when a 3D model is available, a 2D drawing remains important because it defines dimensions, tolerances, notes and inspection requirements.

Document Purpose Recommended
2D Drawing PDF Defines dimensions, tolerances, notes and inspection requirements. Yes
STEP File Helps review 3D geometry, machining feasibility and tool access. Highly Recommended
Material Specification Confirms material selection, grade and standard. Yes
Quantity Forecast Supports prototype and production planning. Yes
Surface Finish Requirements Helps select suitable finishing and processing routes. Yes

Information Every Drawing Should Include

Engineering drawings do not need to be overly complicated, but they should clearly communicate the functional requirements of the part.

Basic Drawing Information

  • Part name or part number.
  • Revision level.
  • Material specification.
  • Unit of measurement.
  • General tolerances.
  • Critical dimensions.
  • Thread specifications.
  • Surface finish requirements.

Useful RFQ Information

  • Prototype quantity.
  • First production order estimate.
  • Annual demand forecast.
  • Expected reorder frequency.
  • Lead time requirement.
  • Inspection report requirement.
  • Packaging or marking requirement.

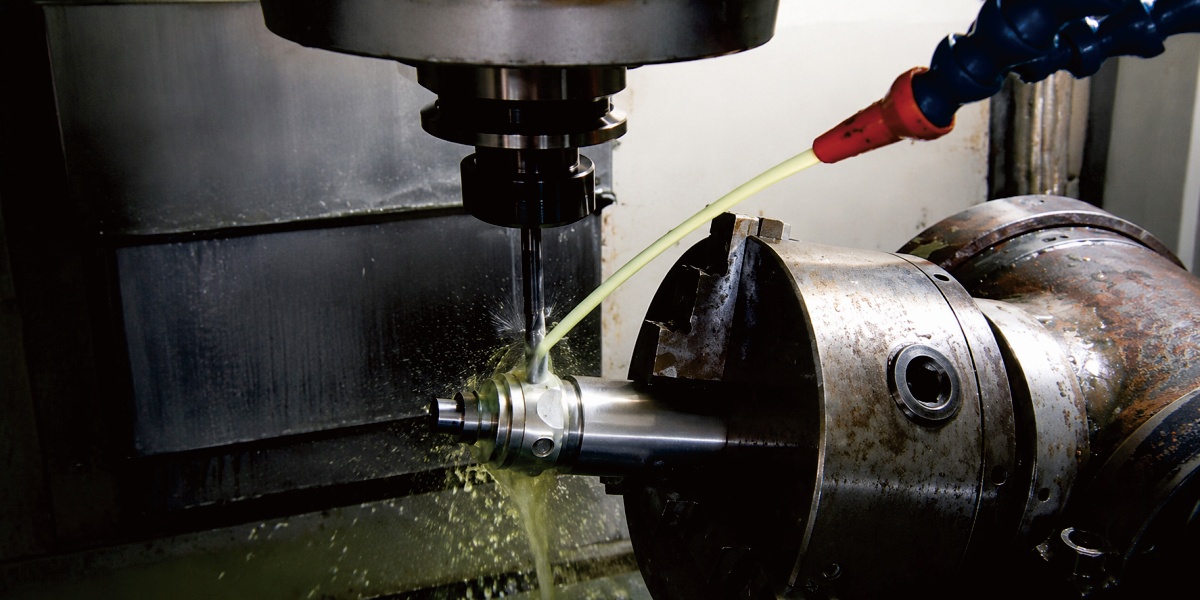

Engineering drawing and CNC machining process

Choosing the Right Material Specification

Material selection directly influences machining cost, lead time, mechanical properties and final application performance. When requesting a quotation, specify the exact material whenever possible.

  • Ti-6Al-4V Grade 5 Titanium.
  • Titanium Grade 2.
  • 17-4PH Stainless Steel.
  • 304 Stainless Steel.
  • 316 Stainless Steel.
  • 6061 Aluminum.
  • 7075 Aluminum.

How Tolerances Affect Quotation Pricing

Tight tolerances generally increase machining time, inspection effort, tooling requirements and overall production cost. Defining critical dimensions separately from general dimensions can help optimize manufacturing cost while maintaining functional performance.

Feature Type Typical Importance Cost Impact
Assembly Interfaces High Higher
Bearing Fits High Higher
Cosmetic Surfaces Medium Moderate
Non-Critical Features Low Lower

Common RFQ Mistakes to Avoid

  • Missing material specifications.
  • No quantity information.
  • Incomplete dimensions.
  • Undefined tolerances.
  • Missing thread details.
  • No revision control.
  • Unclear surface finish requirements.
  • Sending image files instead of engineering drawings.
  • Providing only a screenshot without dimensional information.

Sunrise Industrial CNC Machining RFQ Support

Sunrise Industrial supports custom CNC machining projects for titanium, stainless steel, aluminum and other engineering materials. Our team can review drawings, evaluate manufacturing feasibility and provide quotations for prototype and production quantities.

We manufacture titanium prosthetic components, medical components, dental discs, sputtering target components, fasteners, titanium 3D printing solutions and custom OEM machined parts according to customer specifications.

Conclusion

Submitting a complete CNC machining RFQ package is one of the easiest ways to improve quotation accuracy, reduce engineering clarification cycles and accelerate project timelines.
