Prosthetic pylons and tube-related components are important structural parts in modular lower limb prosthetic systems. They connect adapters, feet, knees, sockets and other modular components while helping maintain alignment, strength and assembly stability.
Sunrise Industrial manufactures custom prosthetic tube components, tube adapters, connectors and related CNC machined parts according to customer drawings and samples, supporting prototype development and repeat OEM production.
What Are Prosthetic Pylons?
A prosthetic pylon is commonly used as the connecting tube or structural link between different modular prosthetic components. In many systems, it works together with tube clamp adapters, pyramid adapters, foot adapters, knee components or socket-side adapters.
Depending on the design, the pylon itself may be a tube section, while the surrounding machined components may include tube receivers, clamps, connectors, end adapters or special transition parts. These related components require accurate machining to ensure proper assembly and stable connection.

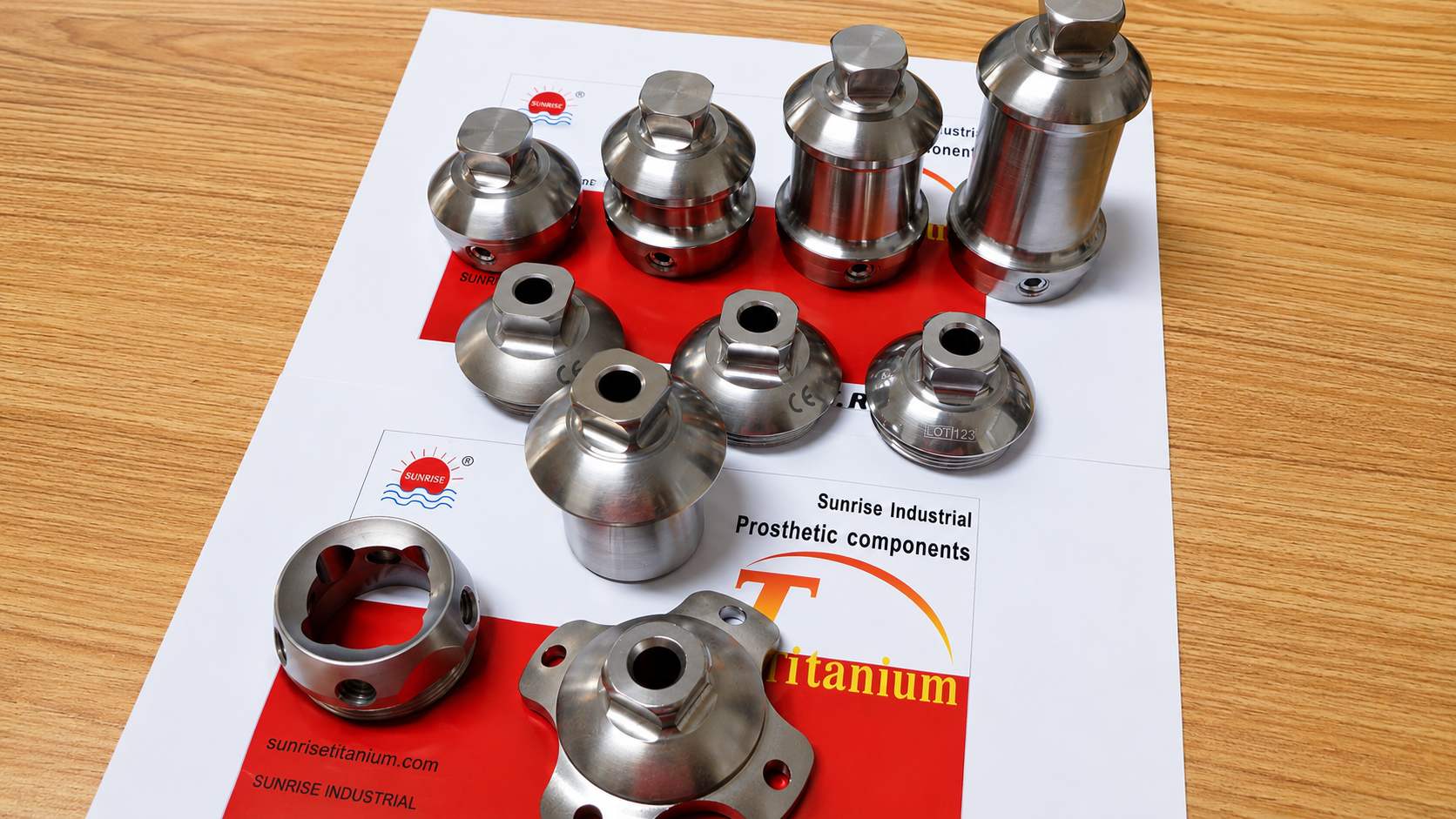

Common Tube-Related Prosthetic Components
| Component | Typical Function |
|---|---|
| Prosthetic Pylon Tube | Provides the main structural connection between modular components |
| Tube Clamp Adapter | Locks and connects the tube to other prosthetic adapters |
| Tube Receiver | Holds the tube or mating component in the assembly |
| End Connector | Transfers connection from the tube to foot, knee or socket-side adapters |
Material Selection
Prosthetic pylons and related tube components may use aluminum, titanium, stainless steel or other materials according to the customer's design. Aluminum is often selected for lightweight tube sections, while titanium may be chosen for high strength, corrosion resistance and durable custom machined connection parts.
For custom projects, the material should be confirmed based on the drawing, expected load, wall thickness, surface finish, assembly method and customer market requirements.
Dimensional Control for Tube Components
Dimensional consistency is very important for tube-related prosthetic components. Tube outside diameter, inside diameter, clamping area, slot width, screw position and mating interface geometry all affect final assembly quality.
For example, a tube clamp adapter must hold the pylon tube securely without damaging the tube surface or affecting alignment. A tube receiver must maintain suitable fit and contact with the mating part while allowing smooth assembly.
Key Manufacturing Considerations
| Requirement | Why It Matters |
|---|---|
| Tube Fit | Ensures smooth assembly and stable clamping |
| Thread Quality | Supports reliable screw locking and repeated adjustment |
| Slot and Clamp Accuracy | Affects clamping force and tube holding performance |
| Surface Finish | Improves appearance, handling and batch consistency |
CNC Machining Process

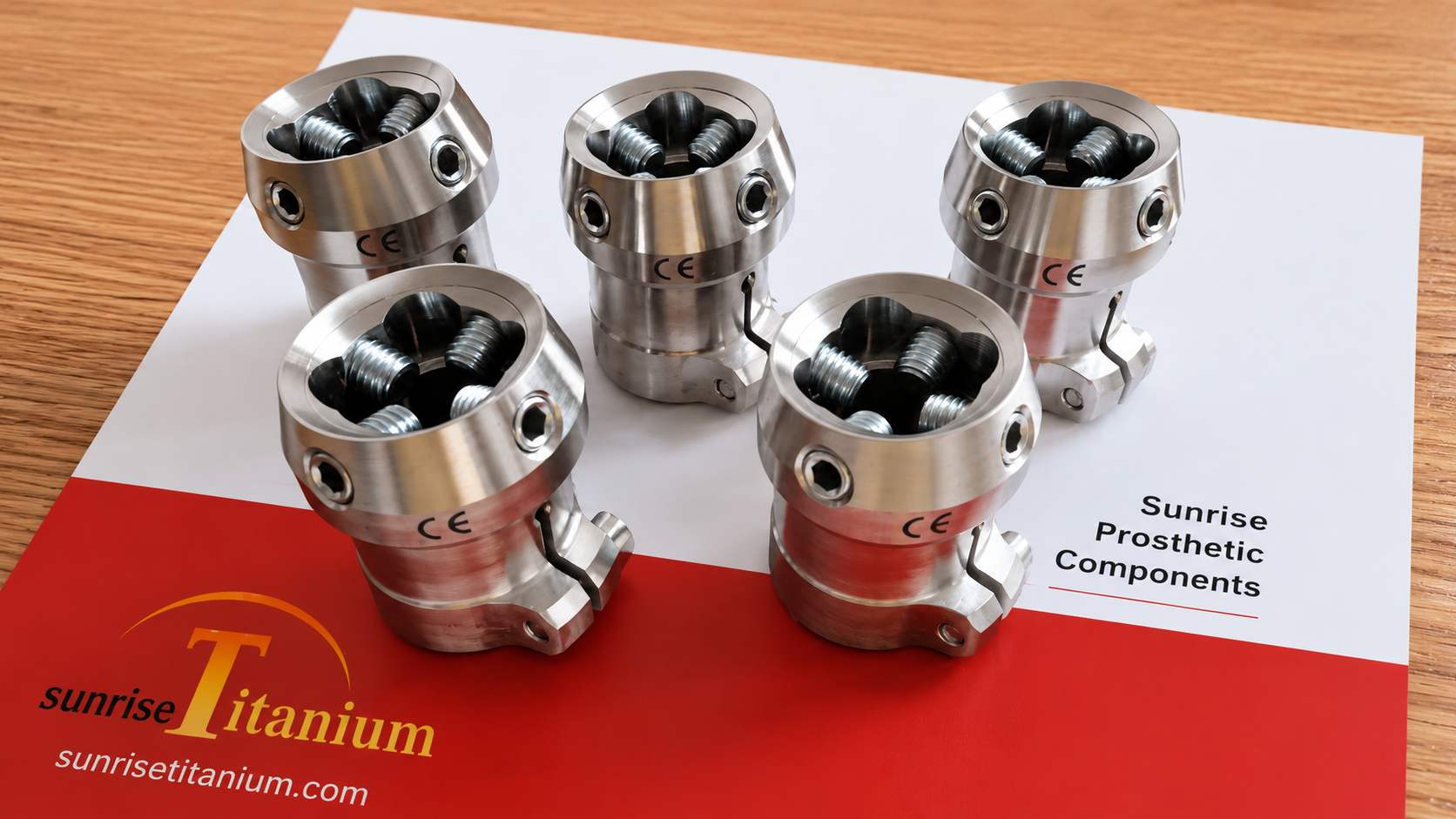

Many prosthetic tube components require a combination of CNC turning, milling, drilling, tapping and deburring. Round features are usually controlled by turning, while slots, side holes, clamp gaps and non-round profiles may require milling operations.
For production batches, stable workholding and consistent machining sequence are important to maintain repeatability from the first piece to the final piece.
Surface Finishing Options
Surface finishing may include machined finish, polishing, blasting, anodizing for aluminum parts or black surface treatment according to customer requirements. Functional surfaces such as clamp bores, threads and mating areas should be protected during finishing when dimensional changes may affect assembly.
For modular prosthetic components, consistent surface appearance across different adapters and tube-related parts is also important for the final product set.
Inspection Points
| Inspection Item | Purpose |
|---|---|
| Tube Diameter Fit | Confirms compatibility with the mating pylon tube |
| Threaded Holes | Checks locking screw assembly and thread quality |
| Clamp Slot Width | Supports proper clamping action |
| Visual and Surface Check | Ensures clean finish, burr removal and batch appearance |
RFQ Recommendation
For an accurate quotation, please provide the 2D drawing, 3D file, tube diameter, material grade, surface finish, quantity and mating component information. If the part must match an existing pylon tube or adapter system, an approved sample can also help confirm fit details.
Custom Prosthetic Tube Components from Sunrise Industrial
Sunrise Industrial manufactures custom prosthetic tube components, tube clamp adapters, tube receivers, pyramid adapters, socket adapters, foot adapters and other modular prosthetic components according to customer drawings. We support CNC machining, surface finishing and inspection for prototype and repeat production projects.
Need Custom Prosthetic Tube Components?
Send us your drawings, samples or technical requirements for manufacturing review and quotation.
