A 4-hole male pyramid adapter combines a mounting base and a male pyramid connection within one compact prosthetic component. The four-hole pattern provides the mounting interface, while the pyramid connects with a compatible receiver and allows the component to become part of a modular lower-limb prosthetic assembly.
Although the overall structure appears simple, dimensional relationships between the pyramid, mounting holes, center feature, base thickness and reference surfaces are important for consistent assembly. Sunrise Industrial manufactures custom 4-hole male pyramid adapters according to customer drawings, samples and technical specifications.

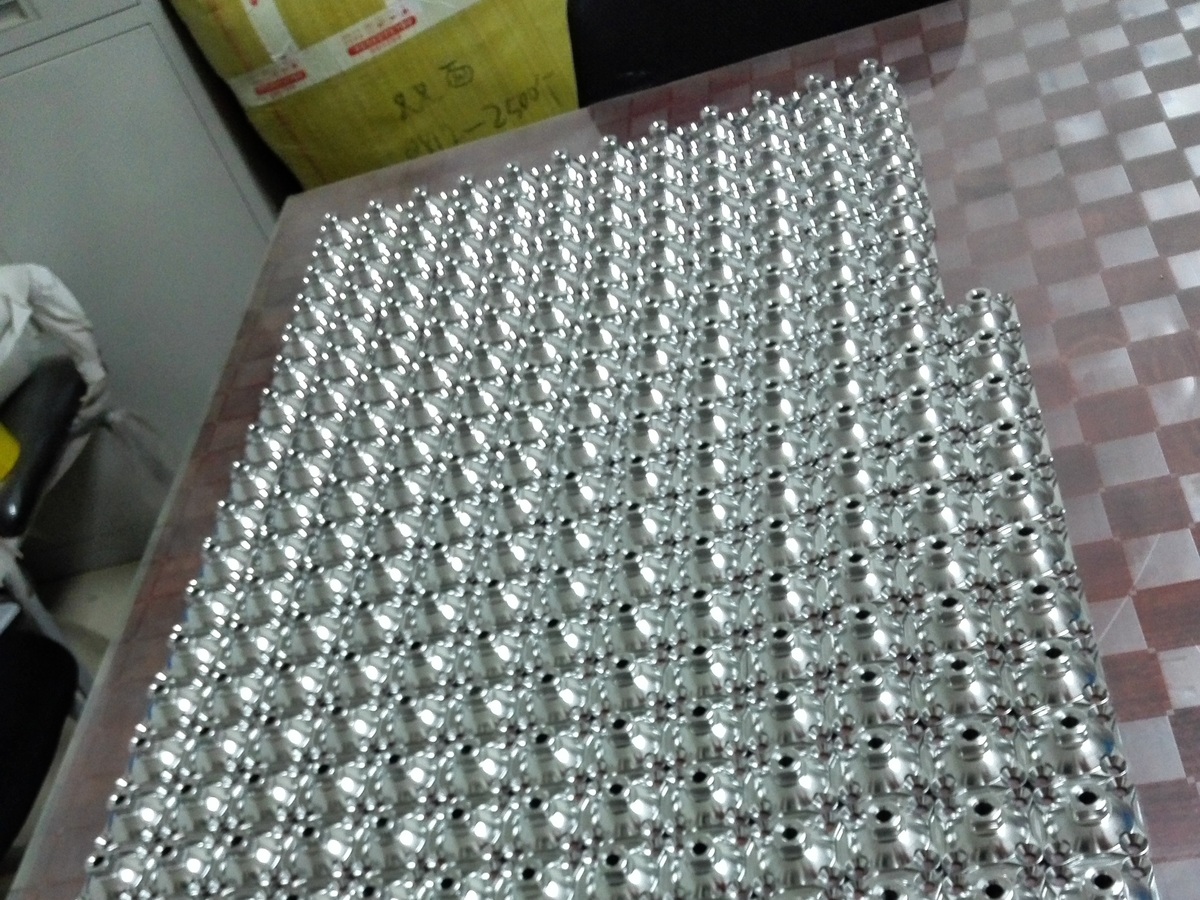

What Is a 4-Hole Male Pyramid Adapter?
A 4-hole male pyramid adapter is a precision-machined prosthetic connection component with four mounting holes around its base and a male pyramid structure positioned above the mounting surface. It is typically used where a fixed mounting interface needs to connect with a compatible female pyramid receiver.
Different prosthetic component manufacturers may use different dimensions, base profiles, pyramid heights, center-hole structures and hole patterns. For this reason, OEM production should follow the approved drawing rather than assuming that every 4-hole pyramid adapter is interchangeable.
Main Features of a 4-Hole Pyramid Adapter
| Feature | Manufacturing Consideration |
|---|---|
| Male Pyramid | Profile, height, angle and relationship to the mating receiver |
| Four Mounting Holes | Hole diameter, center distance, countersink or counterbore when specified |
| Base Thickness | Controlled according to overall height and structural design |
| Center Hole | Optional feature depending on the customer design and mating structure |
| Outer Profile | Round, four-lobed, offset or other drawing-specific base geometry |
Male Pyramid Geometry and Receiver Compatibility
The male pyramid is one of the most important functional areas of the adapter. It connects with a compatible receiver, so its geometry needs to correspond with the mating component specified by the customer.
Important dimensions may include pyramid width, height, surface angle, corner radius, center position and the relationship between the pyramid and the adapter base. Even when two adapters appear visually similar, differences in these dimensions can affect assembly with the receiver.
Why the 4-Hole Pattern Needs Accurate Positioning
The four mounting holes provide the mechanical connection between the adapter and the corresponding mounting structure. Hole diameter alone is not enough to define the interface accurately. Hole-to-hole spacing and the position of the complete pattern relative to the pyramid center are also important.
For repeat production, stable CNC references and suitable inspection methods help maintain consistent hole positions from batch to batch. If the customer uses the adapter with an existing mating plate or socket component, the corresponding hole pattern should be confirmed before manufacturing.
Adapters With and Without a Center Hole
Some male pyramid adapters include a center hole through the pyramid, while others use a solid pyramid structure. The correct configuration depends on the design of the prosthetic assembly and the mating components.
A center hole may require additional drilling, boring or finishing operations and can influence the machining sequence. Hole diameter, depth, concentricity and any related internal thread should therefore be clearly defined in the drawing.
Titanium 4-Hole Male Pyramid Adapters
Titanium alloys such as Ti-6Al-4V are frequently selected for prosthetic adapters where strength, relatively low component weight and corrosion resistance are important design considerations.
Titanium pyramid adapters can combine turned, milled, drilled and threaded features within one compact component. Tool selection, cutting parameters, workholding and machining sequence all influence dimensional consistency and finished surface quality.
Stainless Steel and Aluminum Options
Stainless steel and aluminum can also be used for selected 4-hole pyramid adapter projects. Stainless steel provides strength and durability, while aluminum can help reduce part weight in designs where the specified material and component structure are suitable.
Material should be selected according to the customer's approved design and application requirements. The same external adapter shape should not automatically be produced in another material without considering the complete engineering specification.
CNC Machining the Pyramid Structure
The pyramid itself normally requires milling because its outer geometry is not a simple rotational feature. Depending on the design and available equipment, the main body may first be turned before the pyramid and mounting features are produced by CNC milling.
For more complex components, multi-axis machining can reduce repeated repositioning and provide better access to several faces of the pyramid. The actual machining route should be selected according to geometry, tolerance requirements, quantity and production efficiency.
Machining the Four-Hole Base
The four-hole base may include simple through holes, countersunk holes, counterbores or other mounting details according to the customer drawing. The holes can be produced after the main adapter body has been established using stable machining references.
If the outside profile is also four-lobed or irregular, CNC milling may be used to finish the complete base contour in the same or related setup. This can help maintain the relationship between the outer profile, mounting holes and pyramid center.
Offset 4-Hole Pyramid Adapter Designs
Not every pyramid needs to be positioned directly at the geometric center of the four-hole base. Some custom designs use an offset pyramid position to meet a particular alignment or assembly requirement.
For offset adapters, the relationship between the pyramid center and the mounting-hole pattern becomes especially important. The drawing should clearly define offset distance, direction and relevant datums so that production and inspection use the same reference system.
Controlling Overall Height
Overall adapter height is another important drawing dimension. It is influenced by base thickness, pyramid height and any raised or recessed transition between the two structures.
Low-profile versions may be designed when installation space is limited, while other designs may require additional height. Rather than reducing material only to save weight, these dimensions should follow the structural requirements specified by the customer.
Surface Finishing
After CNC machining, 4-hole pyramid adapters may receive a machined finish, blasting, polishing, anodizing or another project-specific surface treatment. The selected process depends on material, appearance requirements and the customer's finished-component specification.
Functional mating surfaces should be considered before secondary finishing. If a surface treatment can influence dimensions, the pyramid interface, hole edges and other precision areas may require suitable process control.
Typical Inspection Points
| Inspection Area | Typical Check |
|---|---|
| Male Pyramid | Profile, height and drawing-defined interface dimensions |
| 4-Hole Pattern | Hole diameter, spacing and positional relationship |
| Center Hole | Diameter, depth, concentricity and thread when specified |
| Overall Height | Base-to-pyramid dimensional control |
| Base Profile | Outer dimensions, thickness and mounting surface condition |
| Surface Condition | Burr removal, machining marks and specified finish |
Prototype and Small-Batch Production
A new 4-hole pyramid adapter project may begin with a small quantity of samples so that the customer can review dimensions and compatibility with the intended mating components before repeat production.
After the design is confirmed, machining fixtures, CNC programs and inspection references can be maintained for subsequent batches. This approach is useful for OEM customers developing a family of related prosthetic adapters.
Custom Manufacturing from Drawings or Samples
A complete 2D drawing and 3D model are the best references for a custom male pyramid adapter project. The 3D model provides the complete component geometry, while the 2D drawing can define tolerances, hole specifications, threads, surface finish and important inspection requirements.
Existing physical samples can also be reviewed when a customer needs a similar component or when the mating relationship is easier to understand from an assembled part.
Information Helpful for Quotation
For a custom 4-hole male pyramid adapter quotation, please provide the 2D drawing and 3D model when available, material, pyramid dimensions, four-hole pattern, center-hole requirements, overall height, surface finish and quantity. Information about the mating receiver or related assembly can also help with manufacturing review.
4-Hole Male Pyramid Adapter Manufacturing from Sunrise Industrial
Sunrise Industrial manufactures 4-hole male pyramid adapters, offset pyramid adapters, pyramid receivers, socket adapters, tube adapters and other modular prosthetic components according to customer drawings and samples. We support CNC machining in titanium, stainless steel and aluminum for prototypes, small batches and repeat OEM production.
Need Custom 4-Hole Male Pyramid Adapters?
Send us your drawing, material, pyramid interface, hole pattern, surface finish and quantity for machining review and quotation.
