Double-Ended Prosthetic Adapters: Pyramid, Receiver and Custom Length Options

What Is a Double-Ended Prosthetic Adapter?

A double-ended adapter is a modular prosthetic component with connection features at both ends of an extended central body. Depending on the design, one or both ends may contain a male pyramid, female receiver or another connection structure specified by the prosthetic system.

Unlike a short standard adapter, the body length becomes an important design dimension. Different lengths can be used to meet assembly requirements without changing the basic connection concept of the surrounding modular components.

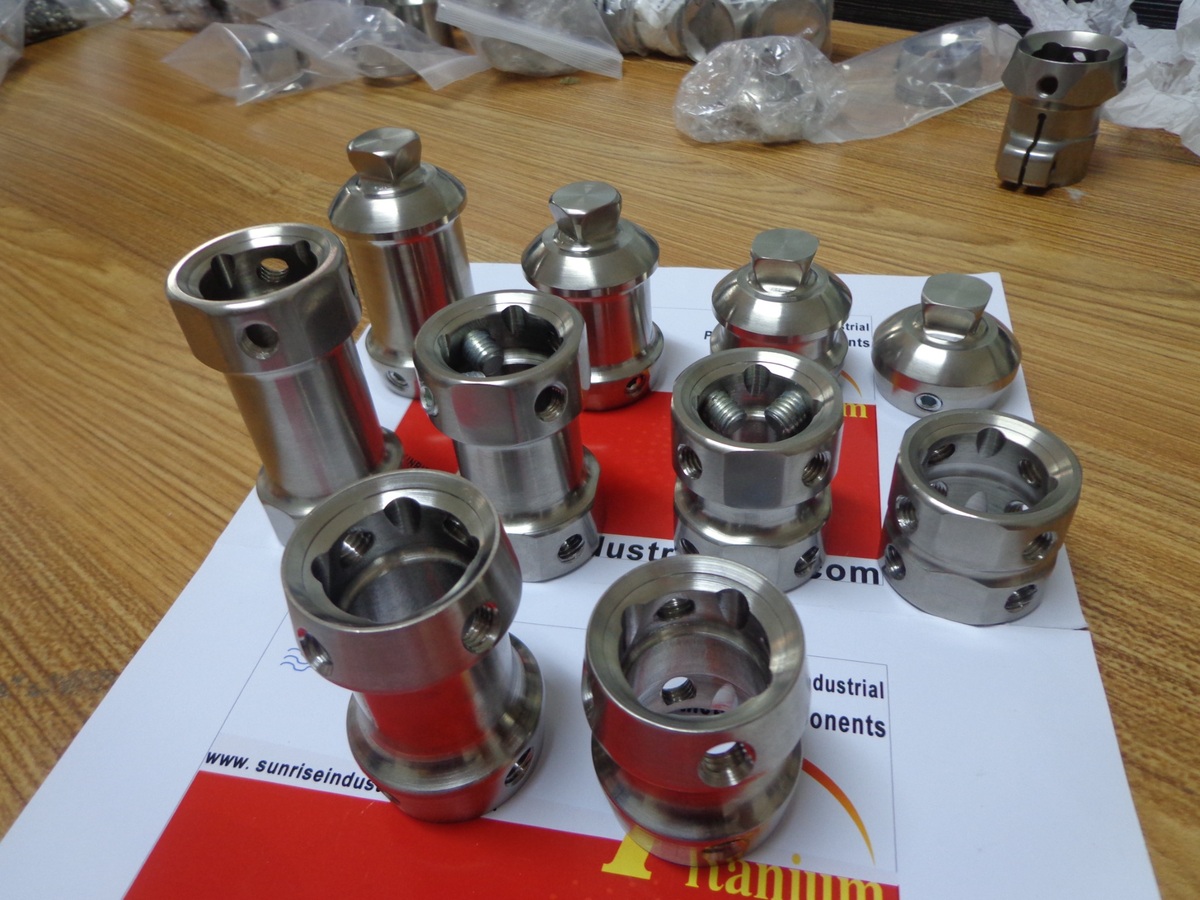

Common Double-Ended Adapter Configurations

Pyramid Connection Options

A male pyramid is one of the common connection structures used on double-ended prosthetic adapters. The pyramid connects with a compatible receiver and forms part of the modular alignment system.

Pyramid geometry should follow the approved drawing because small dimensional differences can influence contact with the mating receiver. Machining review therefore considers the pyramid profile together with its position relative to the adapter body.

Receiver Connection Options

Receiver-type double-ended adapters use an internal female connection designed for a compatible male pyramid. The receiver can include side holes, threaded holes and locking features according to the assembly design.

Important dimensions can include the receiver opening, internal profile, depth, wall thickness and position of threaded holes. These features should be evaluated together rather than as independent dimensions.

32 mm, 45 mm, 60 mm and 75 mm Adapter Lengths

Double-ended adapters can be manufactured in different overall lengths. Common project specifications include approximately 32 mm, 45 mm, 60 mm and 75 mm, while other lengths can be produced according to drawings.

The stated length should always be checked against the dimensional drawing because manufacturers may define overall height and functional connection length differently. For custom manufacturing, the drawing dimension remains the production reference.

Why Adapter Length Matters

Changing the length of a double-ended adapter affects more than its external appearance. A longer body changes material usage, machining depth and the relationship between the two connection interfaces.

Longer designs with internal bores can also require different machining strategies from short solid adapters. Bore diameter, depth and remaining wall thickness should therefore be reviewed during manufacturing planning.

Titanium Double-Ended Adapters

Ti-6Al-4V is commonly used for CNC-machined prosthetic adapters where a combination of mechanical strength, corrosion resistance and relatively low component weight is required.

For longer titanium adapters, machining efficiency depends on the starting material diameter, internal geometry and amount of material that must be removed. Suitable raw material selection can therefore influence both machining time and finished component cost.

Stainless Steel Double-Ended Adapters

Stainless steel can also be used for double-ended adapter designs when specified by the customer. It provides different material properties, machining behavior and finished component weight compared with titanium.

Material substitution should not be based only on matching external dimensions. The selected material should follow the approved component design and project requirements.

CNC Turning of the Adapter Body

The central body of many double-ended adapters contains rotational geometry, making CNC turning an important part of the manufacturing process. Turning operations can establish outside diameters, shoulders, bores, chamfers and reference surfaces.

When both ends contain precision interfaces, machining references should be planned so that the two connection structures remain correctly positioned relative to the central axis.

Deep Bore Machining in Longer Adapters

Long double-ended adapters may contain internal cavities or deep bores to reduce unnecessary material or meet the component design. As bore depth increases relative to diameter, tool access, chip evacuation and dimensional control become more important.

The required internal diameter, depth and remaining wall thickness should therefore be clearly defined on the drawing. If an internal feature is primarily intended for weight reduction, its tolerance may differ from a bore that serves as a functional mating surface.

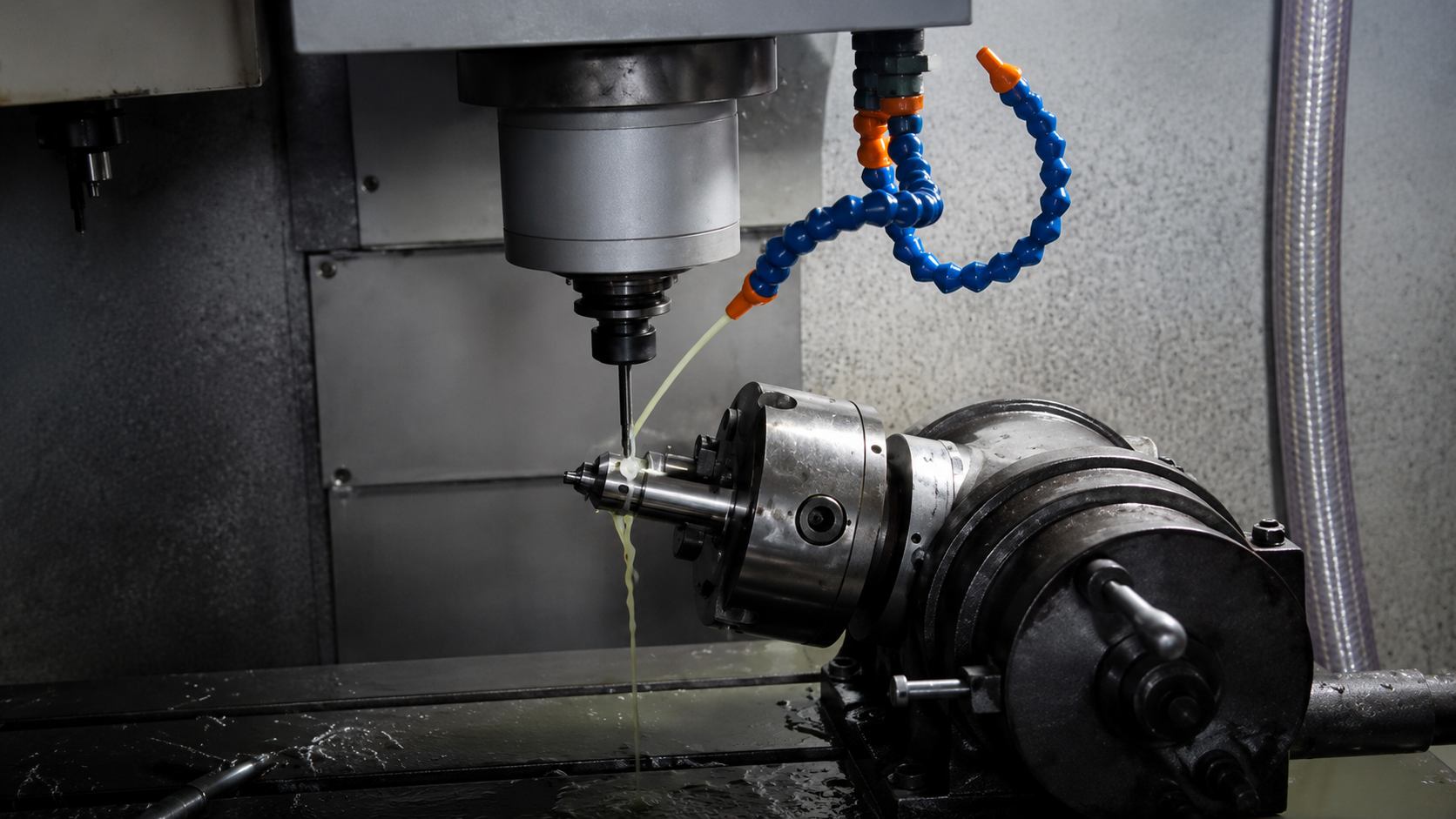

CNC Milling of Pyramid and Side Features

After turning operations, CNC milling may be used to produce pyramid surfaces, flats, slots, side holes and other non-rotational details. Some designs can also be produced using turn-mill equipment to combine multiple operations in fewer setups.

The appropriate process depends on component geometry, quantity, tolerance and available workholding positions.

Threaded Holes and Locking Screws

Receiver designs commonly include threaded side holes for locking or adjustment screws. Thread diameter, pitch, depth and angular position should follow the drawing and corresponding assembly requirements.

The relationship between the screw tip and mating surface is also relevant when a particular contact condition is required. For custom projects, providing the mating screw specification can help with manufacturing and assembly review.

Weight Reduction and Wall Thickness

Reducing unnecessary material can help control the weight of longer adapters, particularly in titanium designs. However, smaller outside diameters and deeper internal cavities can increase machining difficulty.

Weight reduction should therefore be considered together with wall thickness, structural requirements and manufacturing feasibility rather than simply removing the maximum possible amount of material.

Surface Finishing

Double-ended adapters may be supplied with a machined finish or receive additional surface treatment according to customer specifications. Depending on material and project requirements, secondary processes may include blasting, polishing, anodizing, coating or other specified finishes.

Threads, mating surfaces and precision connection areas should be considered before finishing so that the final component remains within the required dimensional condition.

Key Inspection Points

Custom Lengths and OEM Designs

Standard length descriptions are useful for product selection, but OEM projects frequently require modified dimensions or connection details. Overall height, body diameter, internal cavity, pyramid geometry, receiver dimensions and screw positions can all be manufactured according to drawings.

For a family of related adapters, maintaining consistent connection interfaces while changing body length can also simplify modular product development and repeat manufacturing.

Prototype and Small-Batch Production

New double-ended adapter projects can begin with prototype quantities for dimensional and assembly review. This is useful when developing a new interface, changing overall length or adapting an existing component to another modular configuration.

After the design is confirmed, approved machining programs, inspection references and production requirements can be maintained for repeat batches.

What to Include in an RFQ

A useful RFQ should include the 2D drawing and 3D model when available, required material, overall length, outside diameter, internal bore details, pyramid or receiver geometry, thread specifications, surface finish and quantity.

For custom interfaces, information about the corresponding mating components can also help identify potential assembly issues before machining begins.

Double-Ended Prosthetic Adapter Manufacturing from Sunrise Industrial

Sunrise Industrial manufactures double-ended adapters, pyramid adapters, receivers, sliding adapters, tube clamp adapters, tube adapters, socket adapters and other modular prosthetic components according to customer drawings and samples. Production support includes CNC turning, milling, multi-axis machining and related secondary processes for prototypes, small batches and repeat OEM orders.
