Titanium sputtering targets are widely used in physical vapor deposition (PVD), magnetron sputtering and thin-film coating applications. For companies that already have established titanium material suppliers, purchasing finished sputtering targets is not always the most practical manufacturing arrangement.
An alternative is to supply the titanium raw material directly to a specialized CNC machining manufacturer. The machining supplier then processes the material into finished target components according to the required dimensions, drawings and surface specifications.
This arrangement is particularly relevant for high-purity titanium sputtering targets, where material value, machining efficiency and the handling of remaining titanium material can be important purchasing considerations.
Sunrise Industrial provides precision CNC machining for custom titanium sputtering targets, including customer-supplied material projects, round target machining and repeat batch production. This article explains the machining process, material control considerations and information required when outsourcing titanium target manufacturing.
What Is Customer-Supplied Titanium Sputtering Target Machining?
Customer-supplied material machining is a manufacturing arrangement in which the customer provides the titanium raw material and the machining supplier performs the agreed processing operations.
Instead of purchasing titanium material and finished targets from the same supplier, the customer separates material procurement from precision machining.
For example, a sputtering target distributor may purchase high-purity titanium blanks from its preferred material producer and send those blanks to a CNC machining factory for turning, facing, edge machining and dimensional inspection.
The finished targets are then delivered according to the agreed order requirements, while the handling of machining chips, offcuts and unused material is arranged separately.
Why Do Customers Choose This Manufacturing Model?
For high-purity titanium target projects, material procurement and precision machining involve different capabilities.
A material supplier may specialize in titanium melting, processing and purity control, while a CNC machining manufacturer focuses on dimensional accuracy, machining efficiency and production consistency.
Separating these activities can provide several practical advantages.
- Material sourcing flexibility: Customers can continue purchasing titanium from their approved material suppliers.
- Clear machining costs: Machining charges can be evaluated separately from raw material prices.
- Material ownership: Ownership of supplied material and recoverable machining scrap can be defined in the manufacturing agreement.
- Production flexibility: Different target dimensions and quantities can be manufactured according to individual purchase orders.
- Specialized manufacturing: Customers can use a machining supplier with suitable CNC turning equipment and titanium processing experience.
This approach may be suitable for sputtering target distributors, coating material suppliers and industrial customers with established titanium procurement channels.
Titanium Material Requirements for Sputtering Targets
The required titanium purity depends on the sputtering application and the customer's technical specification.
Commonly requested purity levels for titanium sputtering target projects may include 99.5%, 99.9%, 99.99% or other customer-defined specifications.
However, the stated purity percentage alone does not fully define material suitability. Customers may also require information about specific metallic impurities, interstitial elements, material structure and other characteristics relevant to the coating process.
| Material Information | Manufacturing Consideration |
|---|---|
| Titanium Purity | Specified by the customer according to the intended sputtering application. |
| Raw Material Dimensions | Must provide sufficient machining allowance for the required finished dimensions. |
| Material Identification | Heat number, batch identification or other traceability information when required. |
| Material Condition | Incoming surface condition, geometry and any special handling requirements. |
| Documentation | Material certificates or additional records according to the purchase specification. |
When customers supply their own titanium materials, the original material producer normally remains responsible for the material certification. The machining supplier is responsible for the agreed processing and inspection scope.

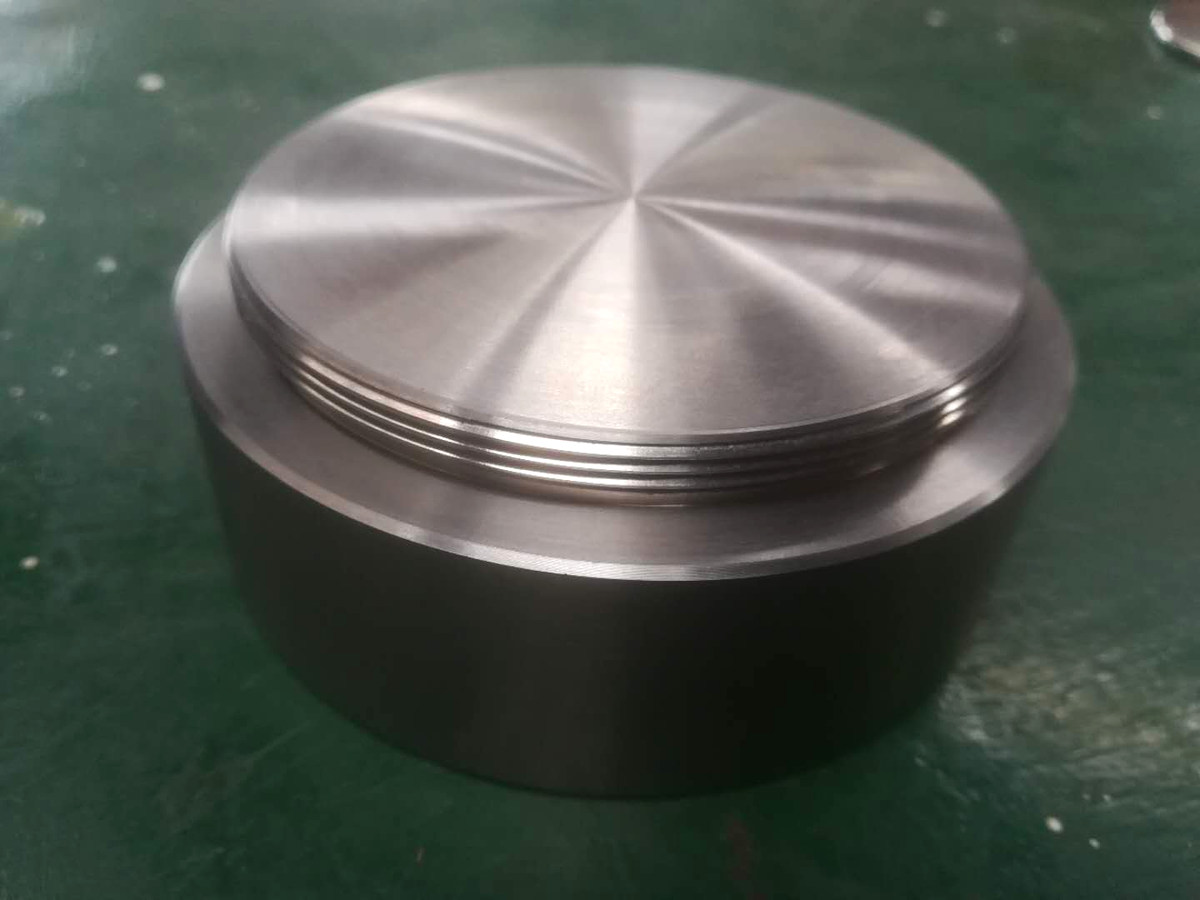

CNC Turning Process for Titanium Sputtering Targets
CNC turning is an important manufacturing method for round titanium sputtering targets.
Depending on the target design, the machining process may include facing, outside diameter turning, thickness control, edge machining and additional features such as steps, recesses or grooves.
1. Raw Material Inspection
Before machining, the supplied titanium blanks should be checked against the agreed incoming material requirements.
Important considerations include blank diameter, thickness, surface condition and available machining allowance.
2. CNC Workholding and Setup
Suitable workholding is important for maintaining dimensional consistency and avoiding unnecessary damage to the target surface.
The fixture and machining sequence should be selected according to target diameter, thickness, material condition and required tolerances.
3. Face Turning and Thickness Control
Face turning is used to produce the required target surfaces and finished thickness.
The machining process should consider the relationship between the two faces, the required thickness tolerance and any specified flatness requirements.
4. Outside Diameter and Edge Machining
The outside diameter is machined according to the drawing or equipment specification.
Depending on the target design, the edge may include chamfers, steps, grooves or other custom features.
5. Deburring and Final Inspection
After machining, the finished target is checked for dimensional conformity, surface condition and burrs according to the agreed inspection requirements.
Material Utilization and Titanium Scrap Management
Material utilization is an important consideration when machining high-purity titanium sputtering targets.
Unlike lower-value general machining materials, high-purity titanium can represent a significant portion of the overall project value.
During CNC turning, some material is removed as machining chips, while additional material may remain as offcuts or unused blanks.
For customer-supplied material projects, the handling of these materials should be agreed before production begins.
Recommended Material Control Items
- Incoming titanium material quantity or weight
- Material identification and batch information
- Finished target quantity and weight
- Recoverable titanium machining chips
- Remaining offcuts and unused material
- Agreed handling of non-recoverable processing losses
- Scrap ownership, collection and return arrangements
For projects requiring material reconciliation, the customer and machining supplier can agree on suitable weighing, segregation and recording procedures.
Recoverable titanium chips should be handled according to the agreed material management requirements. Appropriate segregation can also help reduce unwanted mixing with other machining materials.
The actual quantity of recoverable material depends on the raw blank dimensions, finished target geometry, machining process and collection method. It should not be assumed that all material removed during machining can be recovered without loss.
Surface Finish and Dimensional Inspection
Surface condition and dimensional accuracy are important manufacturing considerations for titanium sputtering targets.
Many round target designs can be supplied with a smooth, bright CNC-turned surface when this finish meets the customer's specification.
Additional grinding, polishing or other finishing processes may be required for projects with more demanding surface requirements.
The required surface finish should be specified before machining. A visually bright surface does not automatically demonstrate compliance with a particular surface roughness value.
Typical dimensional inspection items may include:
- Finished outside diameter
- Overall target thickness
- Flatness when specified
- Parallelism when specified
- Step or groove dimensions
- Edge chamfers and burr removal
- Surface roughness when required by the drawing
Inspection methods and acceptance criteria should follow the customer's drawing and agreed quality requirements.

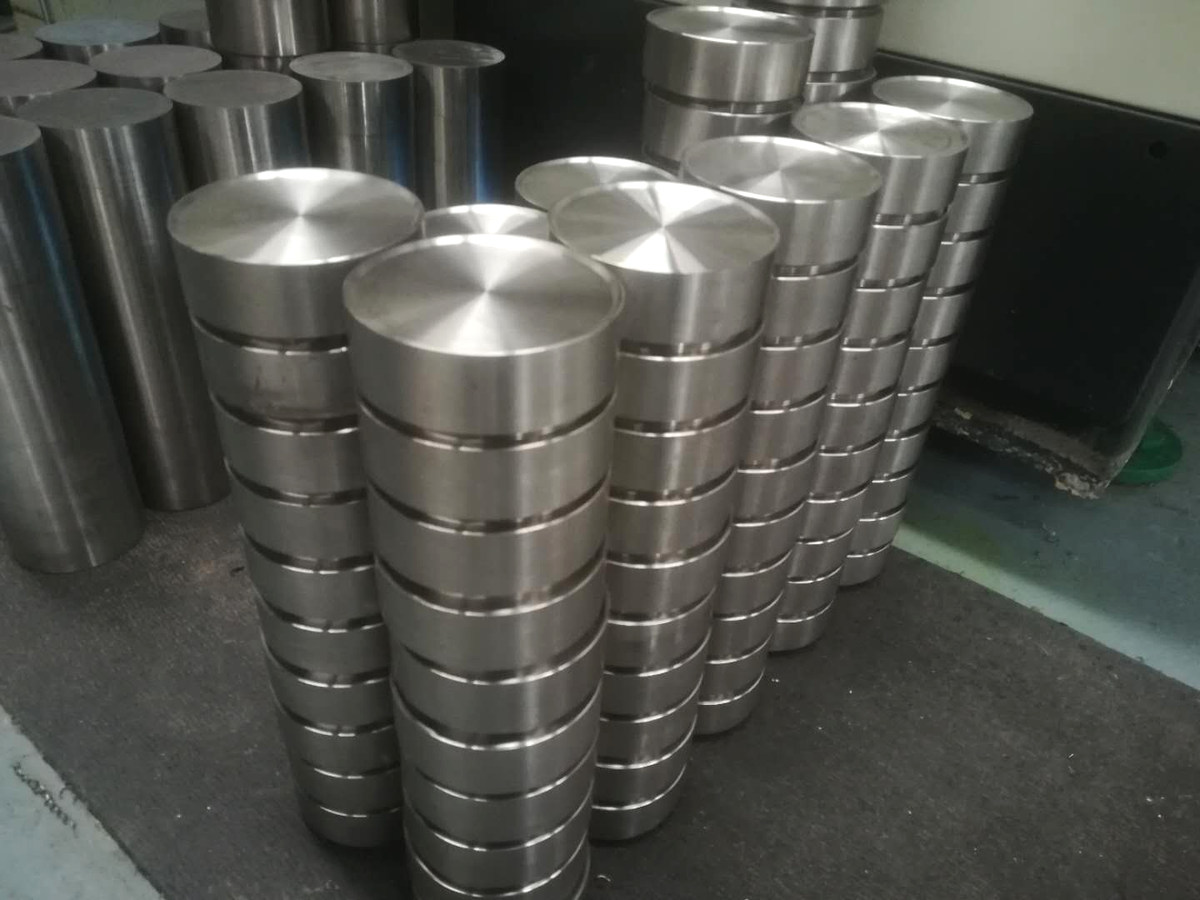

Batch CNC Machining for Round Titanium Targets
Round titanium sputtering targets are suitable for CNC turning production because their main geometry is rotationally symmetrical.
For repeat orders, maintaining stable machining programs, workholding methods and inspection references can help improve consistency between production batches.
Batch machining may involve several target diameters or thicknesses, depending on the customer's product range.
Production planning should consider tool wear, machining allowance, material handling and the number of different target specifications included in the order.
For customers supplying high-purity titanium blanks, it is useful to confirm the required finished quantities and available raw material before scheduling production.
Customer-Supplied Material vs Complete Target Supply
Sunrise Industrial can review titanium sputtering target projects under different supply arrangements.
| Item | Customer-Supplied Material | Complete Target Supply |
|---|---|---|
| Raw Material | Provided by the customer | Sourced according to agreed requirements |
| Material Specification | Defined by the customer | Confirmed before procurement |
| CNC Machining | Performed according to the agreed scope | Included in the manufacturing scope |
| Material Scrap | Handled according to the customer's agreement | Handled according to the supply agreement |
| Quotation | Mainly machining and agreed service charges | Material procurement and manufacturing costs |
The most suitable arrangement depends on the customer's material sourcing capabilities, target specifications, order quantity and supply chain requirements.
What Information Is Needed for a Titanium Target Machining Quotation?
For customer-supplied titanium sputtering target machining, clear technical and material information helps improve quotation accuracy.
- Finished target drawing or dimensional specification
- Titanium purity and material identification requirements
- Raw material blank dimensions and quantity
- Finished outside diameter and thickness
- Required steps, grooves, holes or other machining features
- Dimensional tolerances and surface finish requirements
- Expected production quantity and repeat order schedule
- Material scrap collection and return requirements
- Inspection documentation requirements
- Packaging and delivery requirements
If the customer has several target sizes, a specification list showing each diameter, thickness and quantity is helpful for production planning and quotation.
Why Choose Sunrise Industrial for Titanium Target CNC Machining?
Sunrise Industrial is a China-based precision CNC machining manufacturer with experience in titanium materials and custom industrial components.
Our manufacturing capabilities include CNC turning, CNC milling, turn-mill machining and dimensional inspection.
For titanium sputtering target projects, we support round target machining, custom dimensions, batch production and customer-supplied material processing according to agreed manufacturing requirements.
We focus on practical machining quality, clear technical communication and consistent production for repeat orders.
Explore our Round Titanium Sputtering Targets, Titanium Sputtering Targets and CNC Turning Services for more information about our manufacturing capabilities.
Frequently Asked Questions
Can Sunrise Industrial machine titanium sputtering targets using our own raw material?
Yes. We can review customer-supplied titanium material projects and provide CNC machining according to the required target dimensions, quantities and agreed processing scope.
Can you machine high-purity titanium targets?
High-purity titanium target machining can be reviewed according to the supplied material specification, geometry, handling requirements and inspection criteria.
Can machining chips and remaining titanium material be returned?
Scrap collection, segregation and return arrangements can be discussed before production. Recoverable quantities and handling requirements should be defined in the manufacturing agreement.
Do titanium sputtering targets always require polishing?
No. Some target projects can use a suitable CNC-turned surface, while others require additional finishing. The final surface specification should be confirmed by the customer.
Can you manufacture different target diameters and thicknesses?
Yes. Custom target dimensions and machining features can be reviewed according to drawings, raw material availability and manufacturing feasibility.
Do you support repeat batch production?
Yes. Sunrise Industrial supports repeat CNC machining orders for titanium sputtering targets, with production planning and inspection requirements confirmed according to each project.
