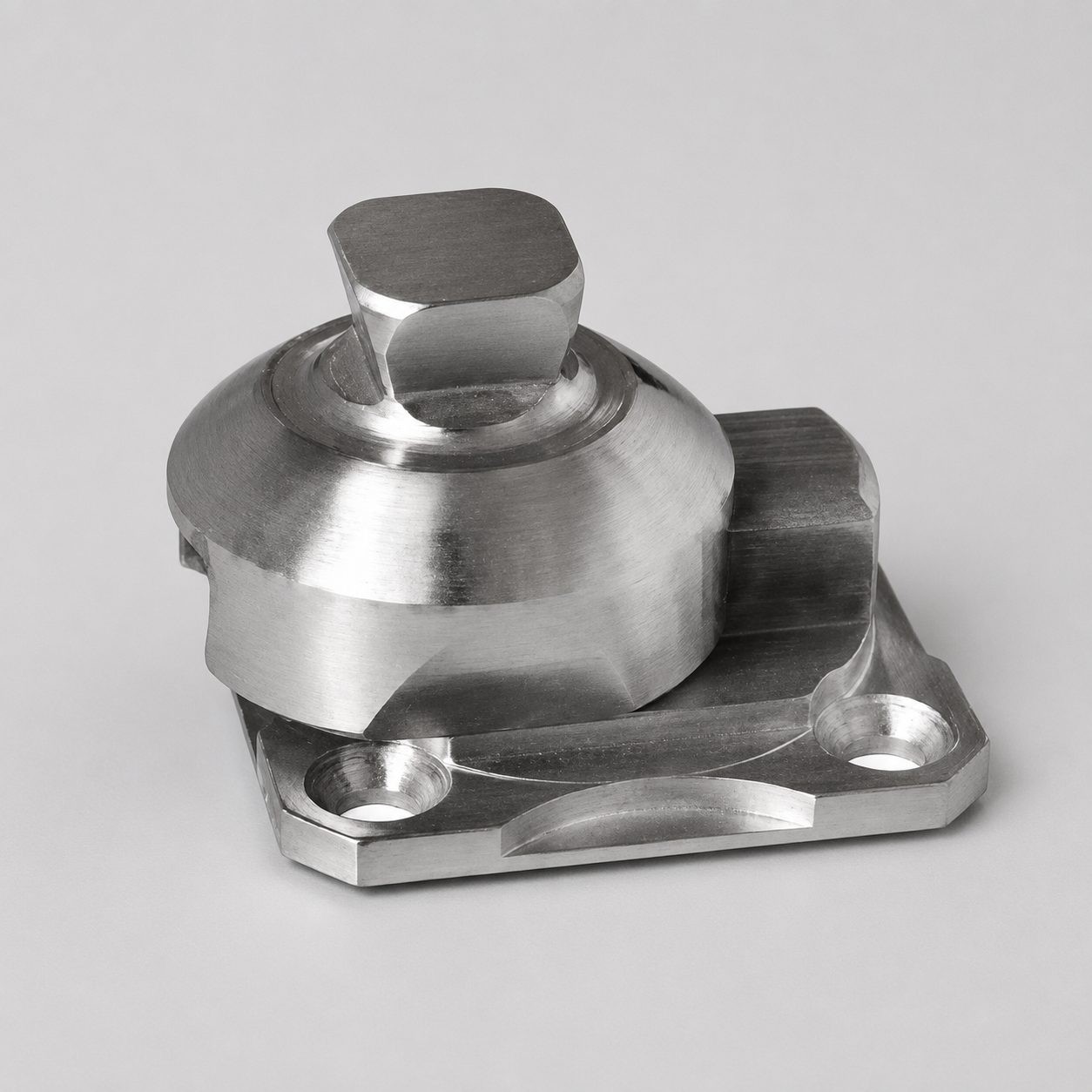

4-Hole Sliding Adapter with Pyramid
Precision 4-hole sliding adapter with pyramid for lower-limb prosthetic systems, supporting 4-hole mounting, sliding adjustment and modular assembly.
Drawings welcome (STEP / IGS / PRT / PDF).
Reply within 24 hours.
- Specification
4-Hole Sliding Adapter with Pyramid
Precision-machined 4-hole sliding adapter with pyramid for lower-limb prosthetic systems, supporting 4-hole mounting, sliding adjustment and reliable pyramid-based modular assembly.
Sunrise Industrial manufactures 4-hole sliding adapters with pyramid for prosthetic connection systems requiring secure mounting, controlled adjustment and stable structural performance. The 4-hole base supports mounting to compatible prosthetic structures, while the male pyramid interface helps provide dependable modular connection and alignment.
This component may also be described as a four-hole sliding adapter with pyramid, sliding adapter with pyramid, sliding 4-hole pyramid adapter, prosthetic sliding adapter with pyramid or 4-hole pyramid sliding adapter. It can be manufactured in titanium, stainless steel, aluminum or other suitable materials according to drawings, samples and project-specific requirements.
Product Overview
4-Hole Mounting Base
The 4-hole base supports secure mounting to compatible prosthetic structures and helps provide stable positioning during modular assembly.
Pyramid-Based Connection
The pyramid interface supports connection with compatible receiver components, helping provide stable prosthetic alignment and reliable modular assembly.
Key Features
- 4-hole base structure for prosthetic mounting applications
- Male pyramid interface for modular prosthetic connection
- Sliding adjustment for practical alignment and assembly positioning
- Suitable for lower-limb prosthetic component systems
- Available in titanium, stainless steel, aluminum and custom material options
- Precision CNC-machined dimensions for reliable fit and assembly
- Custom sliding range, pyramid geometry and mounting hole pattern available
- Manufactured according to drawings, samples or technical specifications
Custom Manufacturing and Specifications
We manufacture 4-hole sliding adapters with pyramid according to different technical and dimensional requirements. Customization may include overall dimensions, 4-hole mounting pattern, sliding slot structure, pyramid geometry, thread specifications, material selection, surface finish and marking.
| Product Type | 4-Hole Sliding Adapter with Pyramid / Four-Hole Sliding Adapter with Pyramid / Sliding 4-Hole Pyramid Adapter |
|---|---|
| Application | Lower-limb prosthetic connection systems, pyramid-based modular assembly, sliding adjustment and alignment applications |
| Main Function | 4-hole mounting, sliding adjustment and pyramid-based modular component connection |
| Connection Type | 4-hole base with male pyramid interface and sliding adjustment structure according to drawing requirements |
| Available Materials | Titanium, stainless steel, aluminum and other suitable materials according to project requirements |
| Manufacturing Method | Precision CNC machining based on customer drawings, samples and technical requirements |
| Customization | Overall dimensions, 4-hole pattern, sliding slot, pyramid geometry, thread details, material, finish and marking |
| Production Basis | 3D files, 2D drawings, samples, dimensional requirements and project-specific specifications |
Applications and Quality Control
4-hole sliding adapters with pyramid are used in prosthetic component systems where 4-hole mounting, pyramid connection, practical sliding adjustment and stable assembly are required.
- Lower-limb prosthetic component systems
- 4-hole prosthetic mounting applications
- Pyramid-based prosthetic fitting
- Sliding alignment adjustment components
- OEM prosthetic component supply
- Custom prosthetic hardware solutions
Quality control covers raw material selection, dimensional inspection, mounting hole position, pyramid geometry, sliding slot structure, thread quality, surface condition and final appearance review.
For 4-hole sliding adapters with pyramid, stable mounting, smooth sliding adjustment, accurate pyramid geometry and repeatable assembly fit are important for practical prosthetic use.
Prosthetic Components Manufacturing Range
In addition to 4-hole sliding adapters with pyramid, Sunrise Industrial manufactures a range of prosthetic adapter components for socket connection, tube connection, receiver connection, pyramid connection, foot connection and modular assembly applications.
This representative display image is used to show our overall prosthetic component manufacturing range and machining experience. The final product structure, dimensions, material and finish should always follow the customer drawing and project requirements.
Why Choose Sunrise Industrial
Sunrise Industrial combines titanium material processing experience with precision machining capability to provide reliable prosthetic adapter and connection component solutions. We support drawing-based production for customers requiring 4-hole sliding adapters with pyramid and related lower-limb prosthetic components.
Dimensional consistency, mounting hole accuracy, pyramid detail control and stable production quality all matter in real prosthetic assembly and long-term supply. For customers looking for dependable manufacturing support, we provide flexible production, responsive communication and consistent product quality.
Frequently Asked Questions
What is a 4-hole sliding adapter with pyramid used for?
It is used in lower-limb prosthetic systems where 4-hole mounting, pyramid connection, sliding adjustment and stable modular assembly are required.
How is it different from a 4-hole sliding adapter with receiver?
This version uses a male pyramid interface, while the receiver version uses a receiver interface for compatible pyramid components.
What does the 4-hole base do?
The 4-hole base supports mounting to compatible prosthetic structures and helps maintain stable positioning during assembly.
What does the pyramid interface do?
The male pyramid interface supports connection with compatible receiver components and helps maintain reliable modular alignment.
What materials are available?
We can manufacture this product in titanium, stainless steel, aluminum and other suitable materials according to project requirements.
Can this product be manufactured according to drawings?
Yes. We support custom production based on 3D files, 2D drawings, samples and project-specific technical requirements.
What drawing formats can you review?
3D files and 2D drawings are welcome, including STEP/STP, IGS, X_T, SLDPRT, PRT and PDF. Other common drawing formats may also be reviewed if available.
Need a Quotation for 4-Hole Sliding Adapters with Pyramid?
Send us your drawing, 4-hole mounting pattern, sliding range, pyramid details, material, quantity or application information for quotation. We support custom 4-hole sliding adapter with pyramid manufacturing for prosthetic component projects.
3D files and 2D drawings welcome: STEP/STP, IGS, X_T, SLDPRT, PRT, PDF and more.
Support for 4-Hole Sliding Adapters with Pyramid
Sunrise Industrial provides drawing-based CNC machining support for 4-hole sliding adapters with pyramid, focusing on mounting hole accuracy, pyramid geometry, sliding adjustment and stable lower-limb prosthetic assembly.
4-Hole Mounting
Mounting hole pattern, base thickness, hole position and countersink details can be controlled according to drawings.
Pyramid Interface
Male pyramid geometry, surface contact areas and assembly fit are inspected for reliable modular prosthetic connection.
Sliding Adjustment
Sliding slot structure, adjustment range and locking details can be reviewed for practical alignment needs.
Custom Production
Material, finish, marking, packaging and small-quantity production can be supported based on drawings or samples.
For quotation, please send your 2D drawing, 3D file, 4-hole mounting pattern, pyramid details, sliding range, material requirement and quantity. We will review feasibility and provide practical manufacturing feedback.
