A 4-hole female receiver adapter combines a four-hole mounting base with an internal receiver interface for connection with a compatible male pyramid. This compact structure is widely used as a modular connection component in lower-limb prosthetic assemblies.
For custom manufacturing, the important features are not limited to the outside shape of the adapter. Receiver geometry, four-hole position, side screw holes, base thickness and the dimensional relationship between these features all need to follow the approved drawing. Sunrise Industrial manufactures custom prosthetic receiver adapters according to drawings, samples and project-specific requirements.
What Is a 4-Hole Female Receiver Adapter?
A 4-hole female receiver adapter is a prosthetic connection component with four mounting holes in the base and an internal receiver structure designed to connect with a compatible male pyramid.
Depending on the manufacturer or drawing, similar components may also be described as 4-hole adapters with receiver, four-hole receiver adapters, pyramid receiver adapters or prosthetic female receiver adapters. The exact name is less important than the specified mating geometry and mounting dimensions.
Female Receiver and Male Pyramid Connection
The receiver is the functional center of this adapter. Instead of having an outward male pyramid, the component contains an internal receiving structure that accepts a compatible pyramid from another modular prosthetic component.
The mating relationship depends on the receiver opening, internal geometry, contact surfaces and side screw positions. Components that look similar externally should not automatically be considered interchangeable because relatively small differences in receiver geometry can affect assembly.
Key Features to Define on the Drawing
| Feature | Manufacturing Consideration |
|---|---|
| Receiver Geometry | Opening, internal profile, depth and mating surfaces |
| Four-Hole Pattern | Hole diameter, center distance and positional relationship |
| Side Screw Holes | Thread specification, angle, depth and position |
| Base Thickness | Controlled according to drawing and overall adapter height |
| Reference Surfaces | Used to maintain the relationship between mounting and receiver features |
Why Receiver Geometry Requires Precision Machining
A female receiver is more than a simple central cavity. Its internal surfaces form the mating interface with the male pyramid, while the surrounding body supports the side screw arrangement used in the assembly.
CNC machining provides control over the receiver opening, internal profile and relative position of the threaded holes. The machining sequence should also provide stable reference surfaces so that the receiver remains correctly positioned relative to the four-hole mounting base.
Four-Hole Mounting Pattern
The four mounting holes connect the receiver adapter with the corresponding prosthetic structure. Hole diameter, center spacing and the position of the complete pattern should follow the customer drawing.
Some designs use simple through holes, while others may specify countersinks, counterbores or different edge details. When an adapter is intended to match an existing component, the mating four-hole pattern should be confirmed before production.
Side Screw Holes and Thread Details
Receiver adapters commonly include threaded holes around the receiver body. Their exact quantity, thread size, angle and position vary according to the adapter design.
These threaded features need consistent positioning because the screws interact with the mating pyramid during assembly. Thread specification, usable thread depth and screw requirements should therefore be clearly shown on the production drawing.

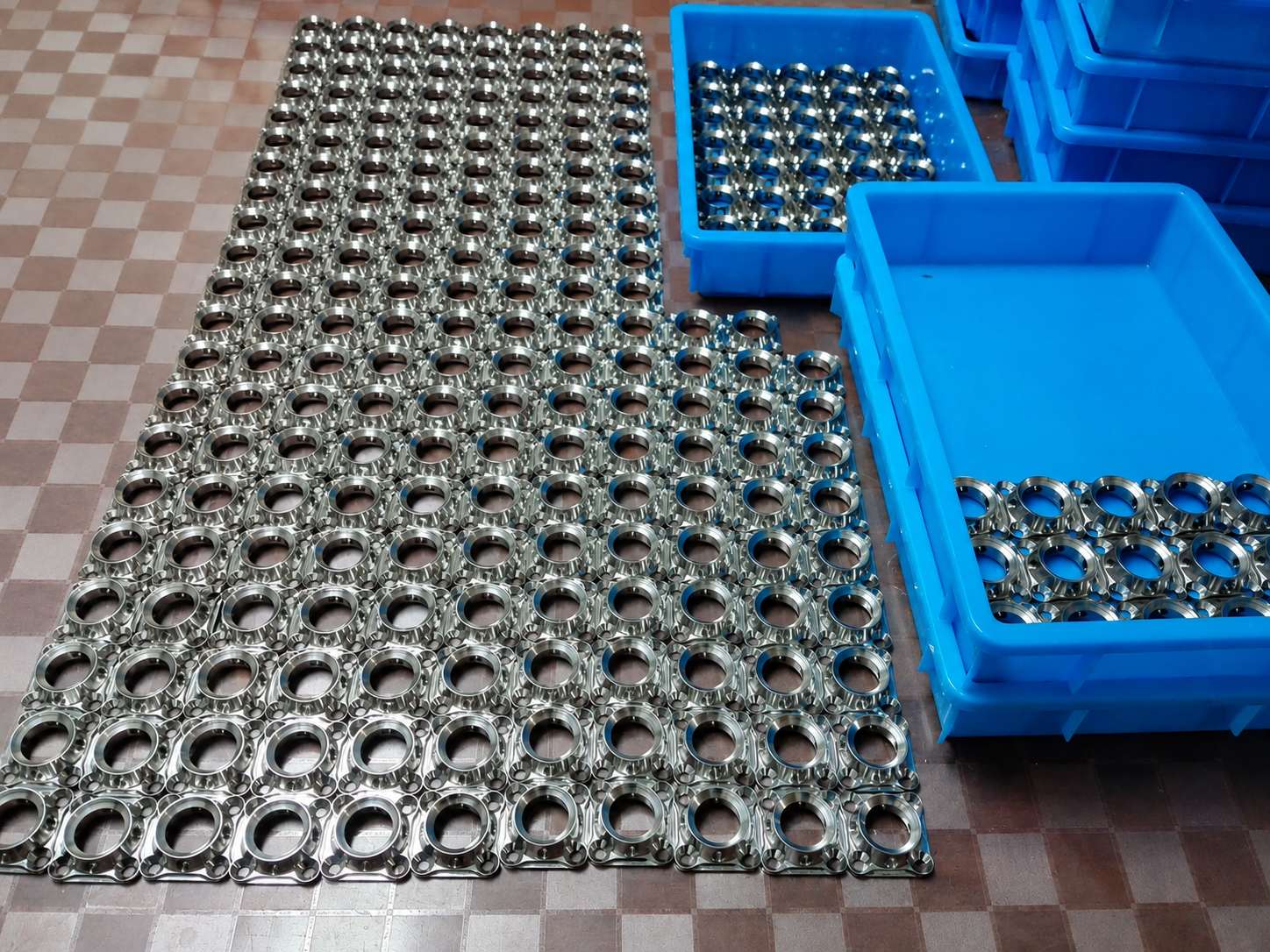

Titanium Female Receiver Adapters
Titanium alloys such as Ti-6Al-4V are commonly selected for precision prosthetic adapters when a combination of strength, relatively low weight and corrosion resistance is required.
A titanium 4-hole receiver adapter may require turning, milling, drilling and threading operations within the same component. Suitable cutting tools, workholding and machining parameters are important for maintaining dimensional consistency while producing clean receiver surfaces and threads.
Stainless Steel Receiver Adapters
Stainless steel is another option for receiver adapters when specified by the customer. Its higher density compared with titanium results in a heavier component of similar geometry, but it can be appropriate for designs where stainless steel is already specified within the prosthetic component system.
Material substitution should not be based only on external dimensions. The final material should follow the approved design, application requirements and customer specification.

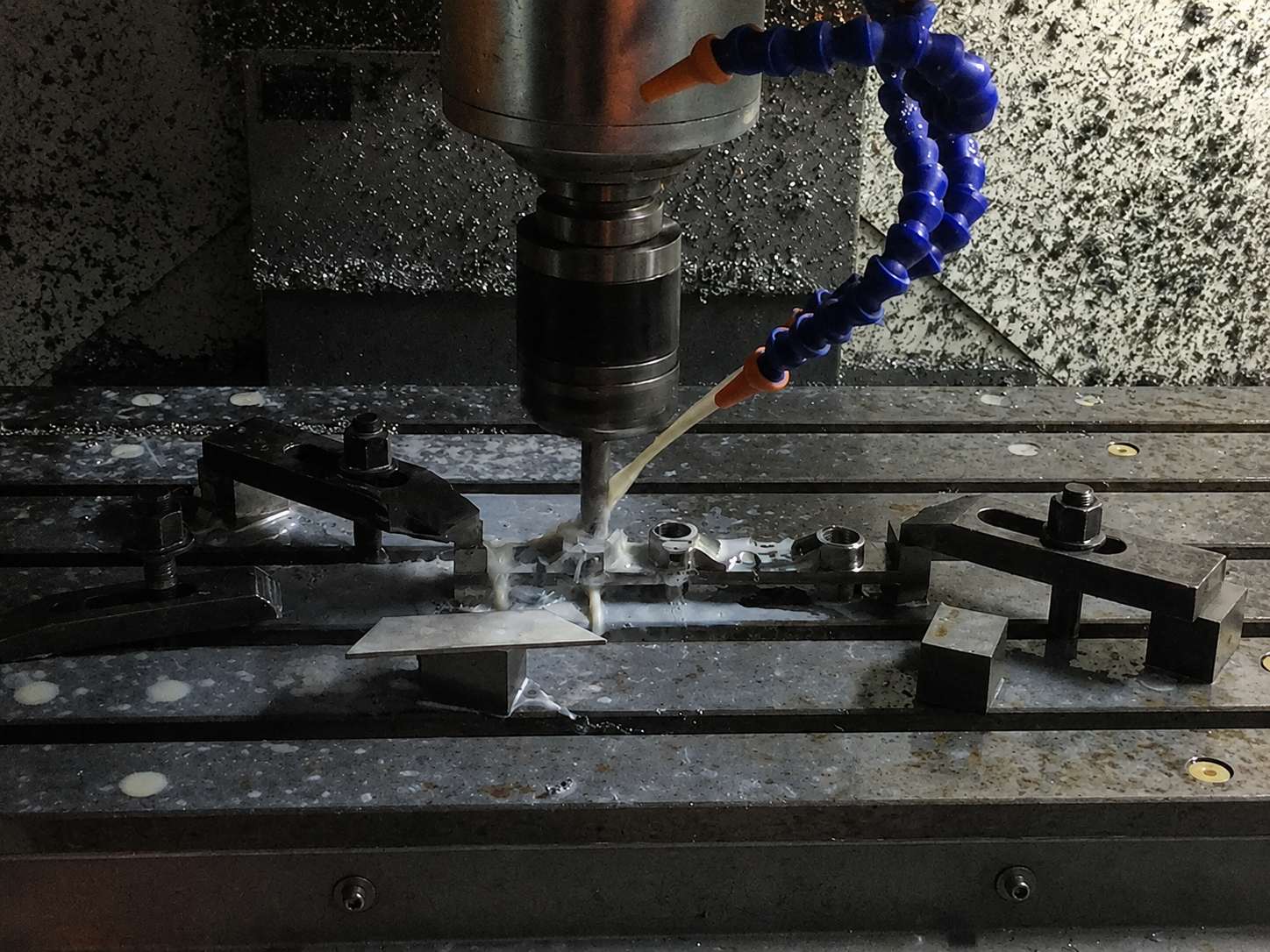

Typical CNC Machining Sequence
The exact production route depends on the adapter geometry, but manufacturing commonly combines turning and milling operations. Turning can establish circular reference surfaces, outside diameters and selected internal features, while milling and drilling can produce the four-hole base and side features.
More complex receiver geometry may require additional setups or multi-axis machining. Production planning should focus on maintaining stable references between the receiver, mounting holes and threaded side holes rather than simply minimizing the number of operations.
Receiver Opening and Internal Surface Control
The receiver opening is a functional feature and should be inspected according to the drawing. Width, depth, profile and internal contact surfaces can influence how the mating pyramid sits inside the receiver.
Burrs around the receiver opening or threaded holes should also be controlled because they can interfere with assembly or make dimensional inspection less reliable.
Concentricity and Positional Relationships
For many receiver adapter designs, the most important manufacturing issue is the relationship between multiple features rather than a single isolated dimension. The receiver center, four-hole pattern, outside profile and side screw locations should all be produced from suitable machining references.
Consistent datum control is especially useful for repeat production because it helps reduce variation between different batches and supports predictable assembly with corresponding components.
Surface Finishing Options
Depending on material and customer requirements, receiver adapters may be supplied with a machined finish or receive blasting, polishing, coating or another specified surface treatment.
Functional receiver surfaces and threaded areas should be considered when planning secondary finishing. Processes that change surface dimensions or introduce coating thickness need to be evaluated against the final drawing requirements.
Typical Inspection Points
| Inspection Area | Typical Check |
|---|---|
| Female Receiver | Opening, depth, profile and drawing-defined mating dimensions |
| 4-Hole Pattern | Hole diameter, spacing and position |
| Side Threads | Thread specification, depth and position |
| Base | Thickness, flatness and outside dimensions |
| Overall Geometry | Relationship between receiver and mounting features |
| Surface Condition | Burr removal, machining marks and specified finish |
Matching a Receiver Adapter to an Existing Male Pyramid
When a new receiver adapter is intended to work with an existing male pyramid, providing information about both components can reduce uncertainty during manufacturing review.
A complete 2D drawing and 3D model are preferred. If these are unavailable, a physical sample or detailed dimensions of the mating pyramid can also help confirm the intended interface before prototype production.
Prototype and Repeat Production
New receiver adapter designs can begin with prototypes or small batches for dimensional and assembly review. After the design is confirmed, CNC programs, fixtures and inspection references can be maintained for subsequent repeat orders.
For OEM customers with several related adapter models, consistent drawing references and clearly defined mating interfaces also make it easier to manage a complete family of modular prosthetic components.
Custom Manufacturing from Drawings and Samples
Sunrise Industrial supports drawing-based manufacturing for custom 4-hole receiver adapters and related prosthetic connection components. Production can be reviewed from 2D drawings, STEP files, IGS files, PRT files, dimensional specifications or physical samples.
For quotation and manufacturing review, it is useful to provide material, receiver geometry, four-hole dimensions, thread specifications, surface finish, quantity and any information about the mating male pyramid.
Information Helpful for Quotation
Please provide the 2D drawing and 3D model when available, material requirement, receiver dimensions, four-hole pattern, side thread details, surface finish and order quantity. A drawing or sample of the mating pyramid can also be useful when interface compatibility needs to be reviewed.
4-Hole Female Receiver Adapter Manufacturing from Sunrise Industrial
Sunrise Industrial manufactures female receiver adapters, male pyramid adapters, socket adapters, tube clamp adapters, tube adapters, sliding adapters, double-ended adapters and other modular prosthetic components according to customer drawings and samples. Titanium, stainless steel and aluminum CNC machining is available according to the specific component design and project requirements.
