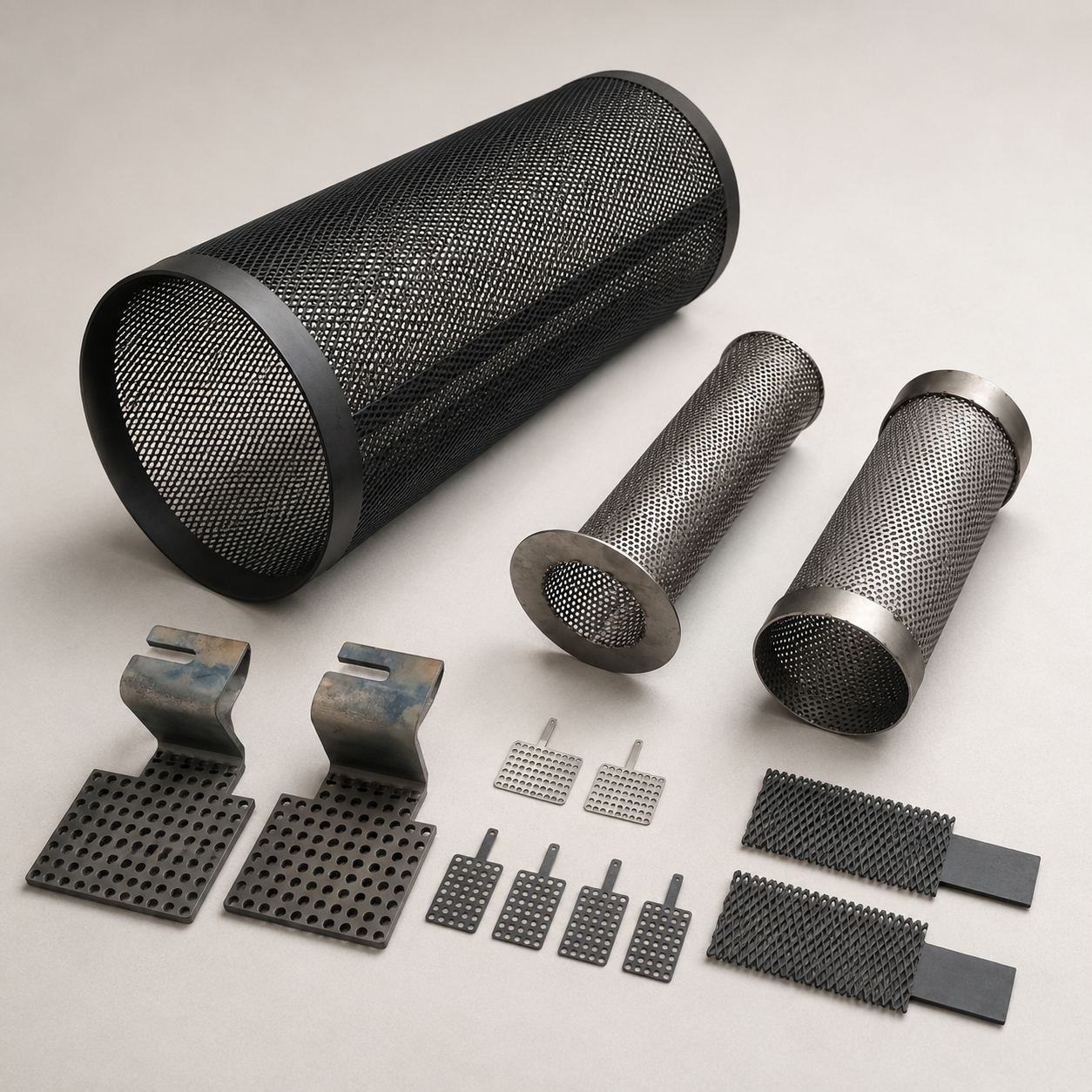

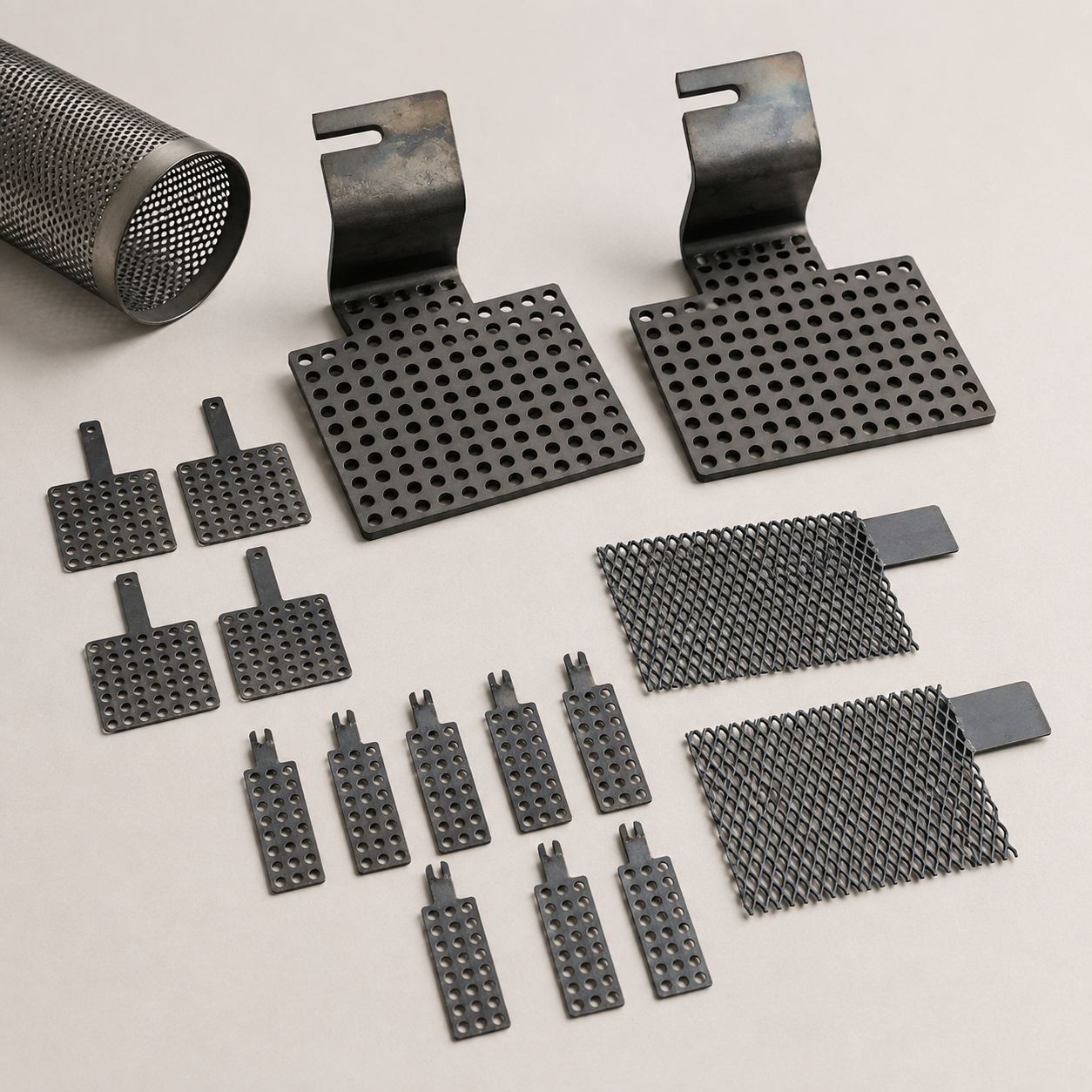

Custom Titanium Mesh Anodes
Sunrise Industrial supplies custom titanium mesh anodes and MMO coated titanium mesh electrodes according to customer drawings, dimensions and technical specifications. Mesh size, overall dimensions, active area, connection tabs and assembly configurations can be customized.
Our supply scope can include titanium mesh preparation, cutting, forming, machining of connection components, welding, coating coordination and final assembly. Both titanium mesh substrates and complete coated anodes can be supplied for OEM projects.
Titanium Mesh Anode Features
Custom Mesh Dimensions
Width, length, thickness and active surface dimensions can be customized according to equipment requirements.
Different Mesh Patterns
Expanded titanium mesh with different opening sizes and strand configurations can be selected according to project requirements.
Large Active Surface Area
Mesh structures provide an open electrochemical surface while allowing liquid circulation through the electrode.
Custom Connection Tabs
Titanium tabs, strips, rods and connection points can be welded to the mesh according to the assembly design.
Flat or Formed Mesh
Titanium mesh can be supplied flat or formed into customized shapes where required by the equipment design.
OEM Anode Assemblies
Mesh electrodes can be supplied individually or as part of complete titanium anode assemblies.

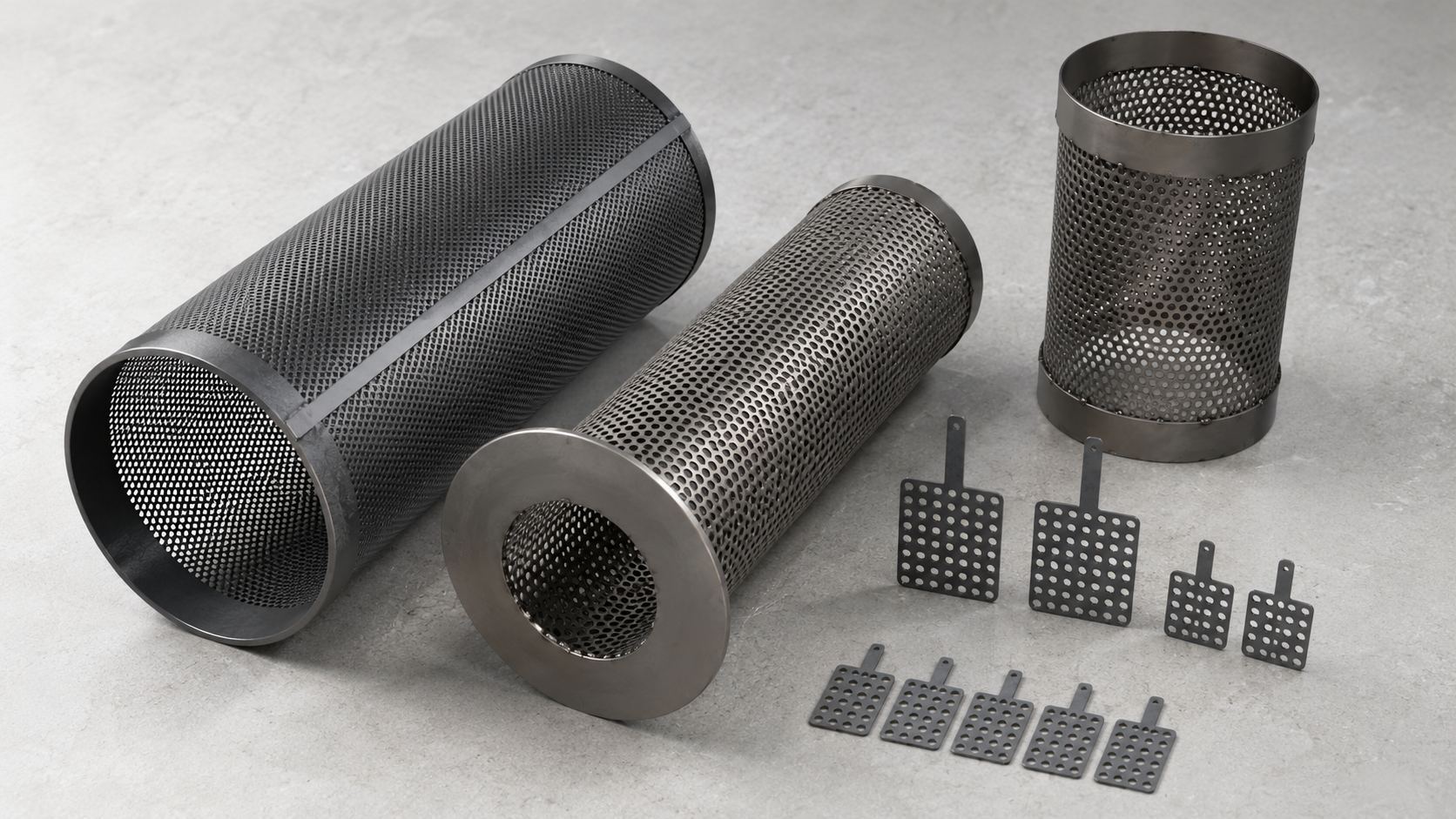

Titanium Mesh Anode Coating Options
Different electrochemical coatings can be supplied according to electrolyte, operating conditions, current density and customer specifications.

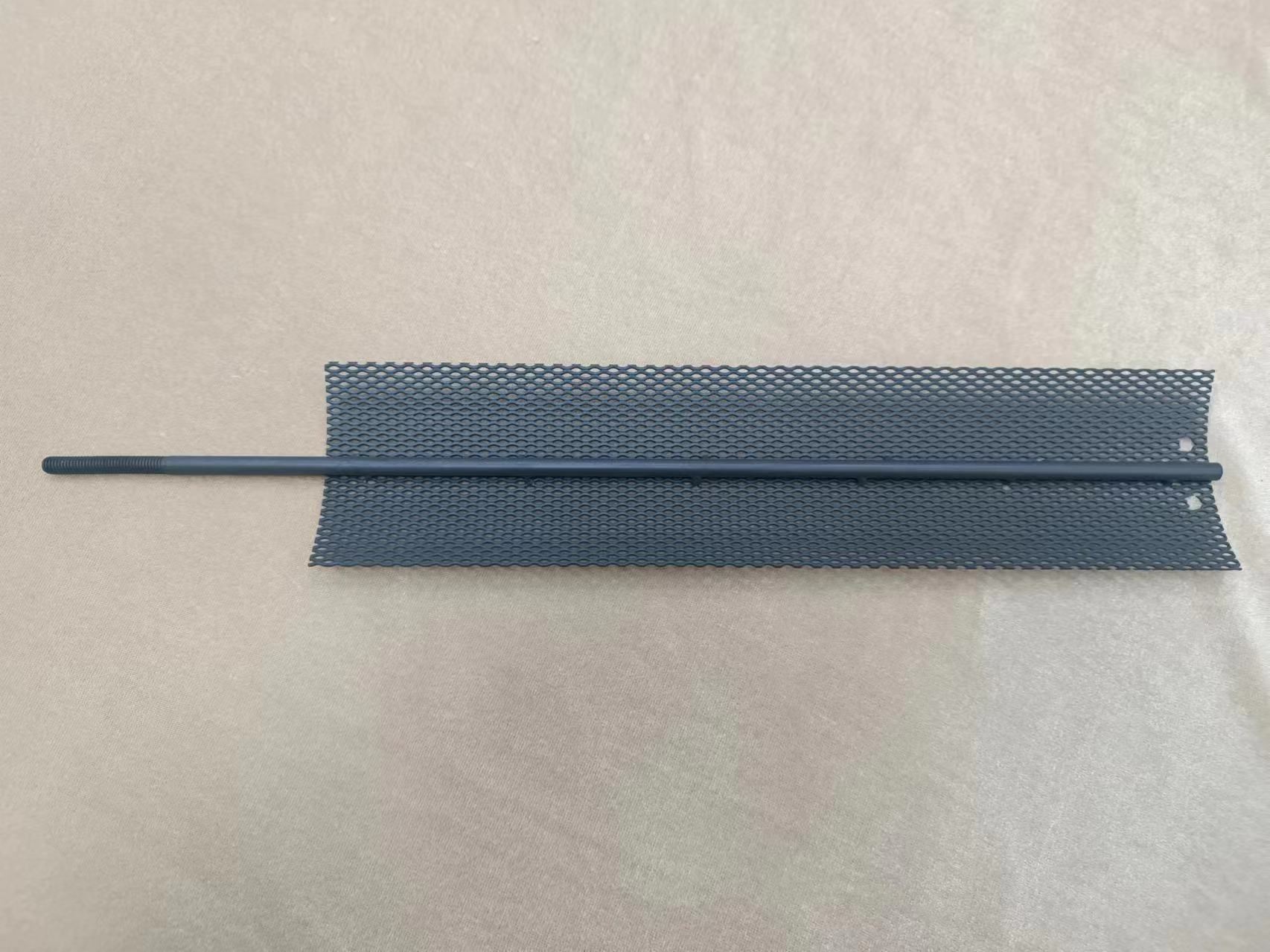

Custom Mesh Forms & Configurations
Titanium mesh anodes are not limited to one standard size. The substrate can be selected and fabricated according to the required active area and installation space.
- Rectangular titanium mesh panels
- Narrow mesh strips
- Small mesh electrodes with connection tabs
- Large-area mesh electrodes
- Flat or formed mesh structures
- Mesh combined with titanium rods or frames

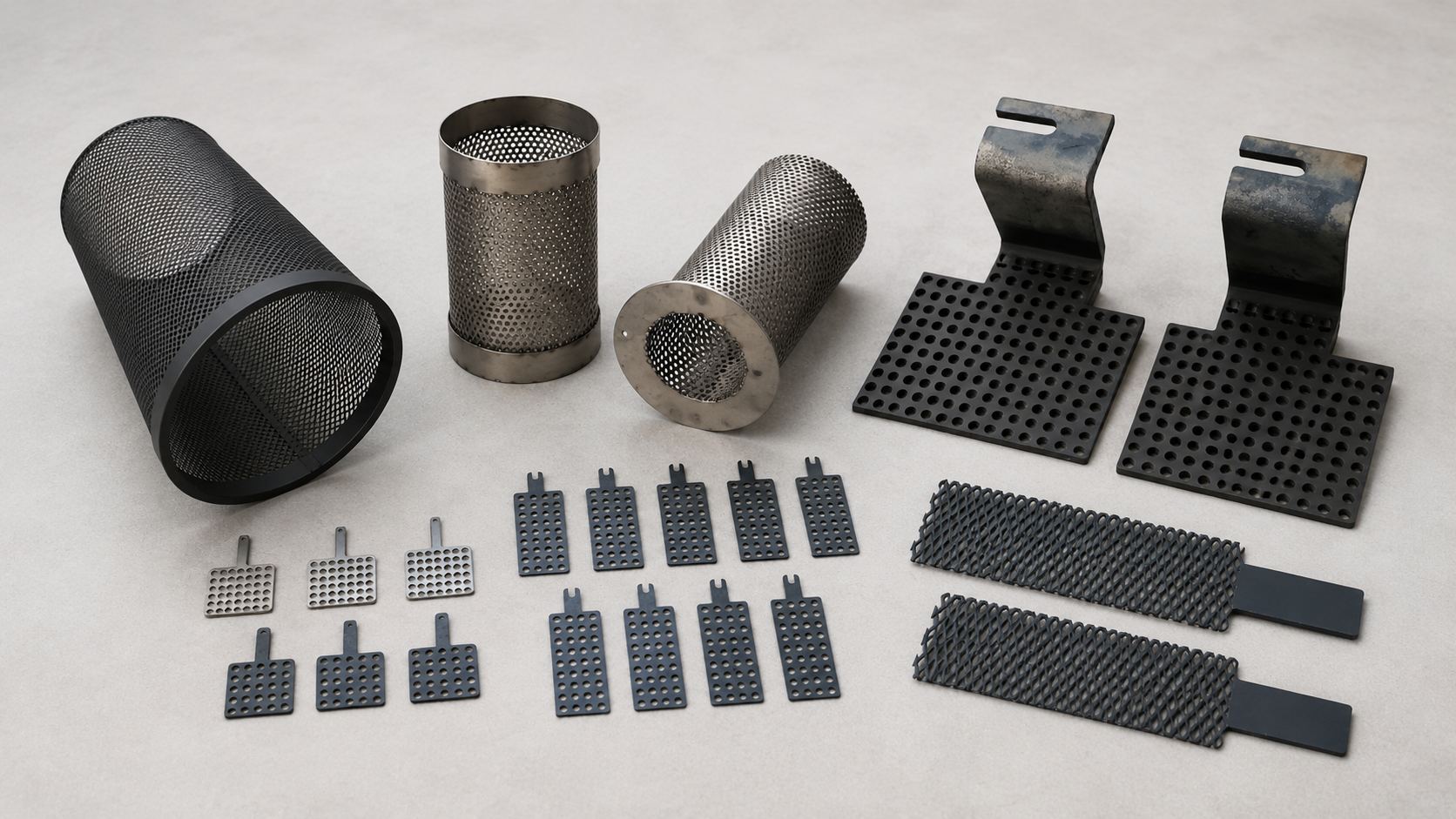

Connections, Welding & Assembly
Electrical and mechanical connection design is an important part of custom titanium mesh anodes. Connection components can be fabricated according to the customer's assembly requirements.
- Welded titanium tabs
- Titanium rod connections
- Flat strip terminals
- Drilled mounting tabs
- Custom brackets and frames
- Complete mesh electrode assemblies
Manufacturing & Fabrication Options
Mesh Cutting
Titanium mesh can be cut to custom widths, lengths and profiles according to the required active area.
Forming
Mesh substrates can be flattened or formed into customized geometries according to assembly requirements.
Titanium Connection Parts
Tabs, strips, rods, mounting components and other titanium connection parts can be CNC machined or fabricated.
Welding & Final Assembly
Titanium mesh and connection components can be welded and assembled into complete electrode units.
Custom Titanium Mesh Anode Options
| Item | Available Options |
|---|---|
| Titanium Material | Grade 1, Grade 2 or other titanium grades according to customer specification. |
| Mesh Form | Expanded titanium mesh, mesh strip, panel or custom formed configuration. |
| Dimensions | Custom width, length, thickness and overall geometry. |
| Mesh Opening | Different mesh opening dimensions and strand configurations depending on substrate availability and project requirements. |
| Connection | Titanium tab, strip, rod, bracket, mounting hole or custom welded connection. |
| Coating | Ruthenium, ruthenium-iridium, iridium-tantalum MMO, platinum or other specified coating systems. |
| Coated Area | Complete mesh surface, partial area or specifically defined active section. |
| Supply Form | Titanium mesh substrate, coated mesh electrode, sub-assembly or complete finished anode. |
Titanium Mesh Anodes for Different Equipment Designs
Different electrochemical systems require different electrode dimensions, active areas and connection structures. Sunrise Industrial supports drawing-based mesh anode fabrication for customized OEM equipment.

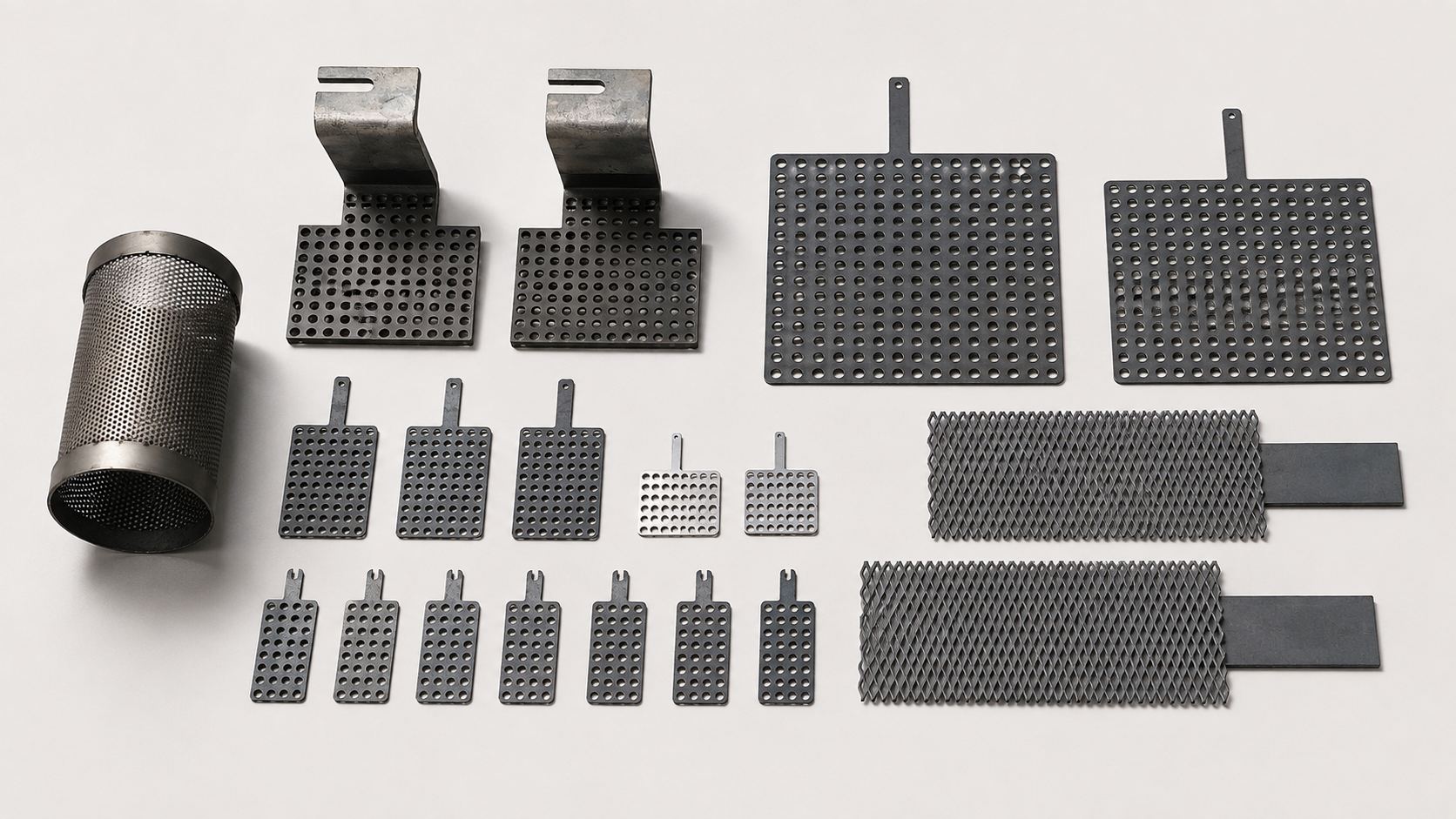

Applications of Titanium Mesh Anodes
Water & Wastewater Treatment
MMO titanium mesh anodes can be supplied for electrochemical oxidation and customized water and wastewater treatment equipment.
Electrochlorination & Disinfection
Mesh electrodes can be supplied for customized electrolytic disinfection and electrochlorination systems according to customer specifications.
Electrolysis Equipment
Titanium mesh electrodes can be integrated into industrial electrolysis and other electrochemical processing equipment.
Custom OEM Electrochemical Systems
Custom mesh size, coating area and connection structures can be manufactured for specialized electrochemical equipment.
Quality & Inspection
Titanium mesh anodes are manufactured according to customer drawings and agreed technical specifications. Overall dimensions, mesh configuration, connection positions and assembly dimensions can be inspected according to project requirements.
Material certification and project-specific inspection documentation can be provided when required. Coating composition, active area, adhesion and other coating inspection requirements can also be coordinated according to the agreed specification.
Why Sunrise Industrial?
Custom Titanium Fabrication
Experience in titanium material supply, machining, fabrication, welding and custom OEM components.
Flexible Mesh Configurations
Mesh dimensions, connection designs and assemblies can be customized according to equipment drawings.
Integrated Supply
Titanium substrate, connection components, welding, coating coordination and inspection can be managed through one supply channel.
OEM Production Support
Support for prototypes, samples, small batches and repeat production.
Looking for Custom Titanium Mesh Anodes?
Send us your mesh dimensions, titanium grade, coating requirements, connection design and quantity. We will review the fabrication, coating and assembly requirements for your project.
3D files and 2D drawings welcome: STEP/STP, IGS, X_T, SLDPRT, PDF and more.
Manufacturing Support for Custom Titanium Mesh Anodes
Sunrise Industrial supports custom titanium mesh anode projects from titanium mesh preparation and connection fabrication to coating coordination, welding and complete OEM assembly.
Custom Mesh Sizes
Mesh width, length, active area and overall geometry can be customized according to customer drawings and equipment requirements.
Different Mesh Configurations
Different mesh openings, flat panels, narrow strips and formed configurations can be supplied according to project requirements.
Welding & Connections
Titanium tabs, strips, rods, brackets and other connection components can be welded to the mesh substrate.
Complete Coated Assemblies
Mesh substrates, MMO coating, connection components and final assembly can be coordinated for complete OEM supply.
